Yamaha

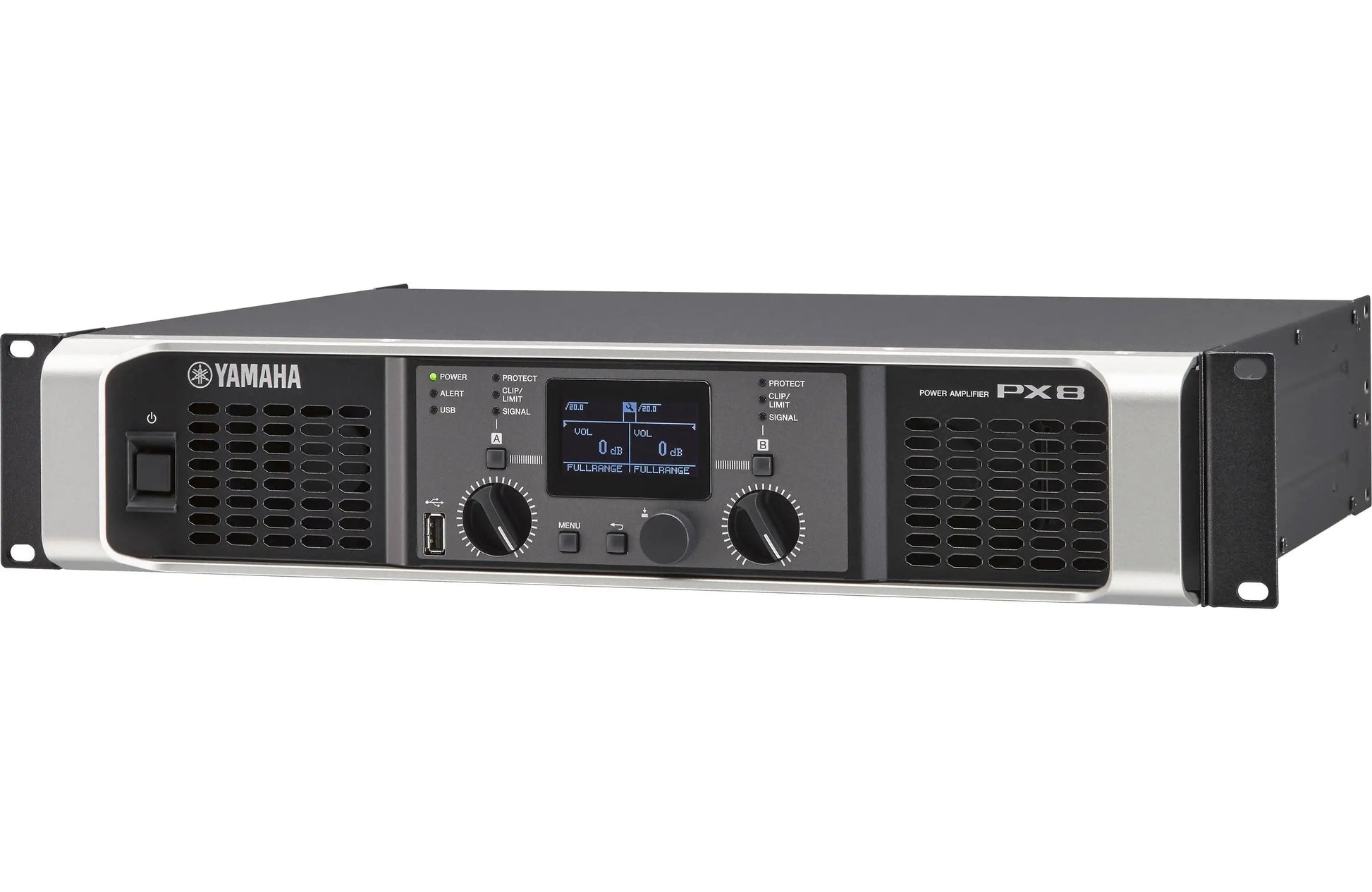

YAMAHA PX8
YAMAHA PX8
In stock
Couldn't load pickup availability
Johannesburg & Pretoria: 2-3 business days
Cape Town: 2-3 business days
Durban: 3-4 business days
Other major cities: 3-5 business days
Remote & rural areas: 5-7 business days
Timeframes are measured from dispatch, not from order placement. Stocked items are dispatched within 1 business day of payment confirmation. Specialist and indent items are confirmed with a written dispatch date before your order is processed. Free nationwide delivery via insured courier.
View full shipping policy →
- EFT (Electronic Funds Transfer) — Direct bank transfer from any South African bank account. No additional fees. Orders confirmed within 1 business day of payment reflecting.
- Cross Border Transfer — For customers in SADC neighbouring countries (Lesotho, Zimbabwe, Mozambique, Namibia, Botswana, Eswatini). Invoices settle in ZAR; direct delivery is within South Africa only, and cross-border orders are handled on a collection/freight-forwarder basis.
- Wire Transfer — For international customers outside the SADC region. Proforma invoices are processed in ZAR value; direct delivery is within South Africa only, with collection/freight-forwarder arrangements required for export orders.
Orders are confirmed once payment reflects. Banking details are provided in your order confirmation email. View payment details →
Supplied as an independent parallel import. Warranty is provided directly by VisionSounds — warranty claims are handled by us, not the manufacturer. This is in addition to your rights under the Consumer Protection Act, including the six-month implied warranty of quality.
Returns accepted within 30 days of receipt in the condition supplied, with all original packaging and accessories.
Faulty or incorrect items: free return shipping covered by VisionSounds.
Change of mind returns: customer responsible for return shipping costs.
No restocking fees. Refunds processed within 7 business days of inspection.
View returns & refund policy →
Add the YAMAHA PX8 by Yamaha to your setup — professional audio equipment trusted by engineers, musicians, and event production crews across South Africa.
General Specifications 100V model 120V model 220V-240V model Amplifier Class Class D, Balanced output circuit (BTL) Output Power (1kHz Non-clip 20msec Burst Both Channels Driven) 8Ω 800W x 2 800W x 2 800W x 2 4Ω 1050W x 2 1050W x 2 1050W x 2 2Ω 600W x 2 600W x 2 600W x 2 8Ω/Power Boost Mode - - - 4Ω/Power Boost Mode - - - Sampling Frequency Rate Internal 48kHz A/D D/A Converters AD/DA: 24-bit linear, 128 times over sampling Total Harmonic Distortion 0.1% (1kHz, 10W), 0.3% (1kHz, Half power) Frequency Response ±1.0dB (1W, 8Ω, 20Hz to 20kHz) S/N Ratio 101dB (A-weighted, 8Ω, Gain setting = +14dBu) Crosstalk Less than -60dB (Half Power, 8Ω, 1kHz, Vol max input 150Ω shunt) Voltage Gain/Sensitivity 8Ω Volume Max 32.0dB/+8.3dBu (Gain setting: 32dB), 26.0dB/+14.3dBu (Gain setting: 26dB), 36.3dB/+4dBu (Gain setting: +4dBu), 26.3dB/+14dBu (Gain setting: +14dBu) 8Ω Volume Max/ Power Boost Mode - Maximum Input Voltage +24dBu Input Impedance 20kΩ (Balance), 10kΩ (Unbalance) I/O Connectors Line Input XLR-3-31 x 2, 1/4" PHONE (TRS) x 2 Speaker Output Neutrik speakON NL4 x 2, Binding post x 2 pairs, 1/4" PHONE (TS) x 2 Others USB 2.0 Standard-A Connector (Female) for Save/Load, Speaker preset update, Firmware update with USB memory; AC inlet x1 with AC cord clamp Indicators POWER x 1 (Green), ALERT x 1 (Red), USB x 1 (Green), PROTECT x 2 (Red), CLIP/LIMIT x 2 (Red), SIGNAL x 2 (Green); Auto LED off feature Processors Input summing; D-CONTOUR (FOH/MAIN, MONITOR, OFF); Delay (0 - 74msec); HPF/LPF (cutoff frequency 20Hz~20kHz with polarity control); Speaker Processor (6 band PEQ* + Limiter + Delay) Latency 1.5 msec (Analog Input to Speakers) Presets 8 user amplifier presets (Factory preset: Speaker presets for Yamaha passive speakers) Protection Circuit Load Protection POWER switch on/off: Output mute; Output voltage protection: Over voltage limiter, user configurable by wattage and speaker preset; DC-fault: Power Supply shutdown (NOT restored automatically) Amplifier Protection Thermal: Output limiter (Restored automatically) → Output mute (Restored automatically); Over current: Output mute (Restored automatically); Over voltage: Output limiter (Restored automatically); Integrated Power Limit: Output limiter (Restored automatically) Power Supply Protection Thermal: Output limiter (Restored automatically) → Power supply shutdown; Over voltage: Power supply shutdown; Over current: Power supply shutdown Cooling 16 step variable speed fan x 2, front to rear airflow Power Requirements Depending on area of purchase; 100V 50Hz/60Hz, 120V 60Hz, 220V-240V 50Hz/60Hz *Verified as operating at rated power voltage +/- 10% voltage. Power Consumption 280W (1/8 MAX power, 4Ω, Pink noise at all channels), 60W (4Ω, Idling) Dimensions (W x H x D) 480mm x 88mm x 388mm (18-7/8" x 3-7/16" x 15-2/8") (2U) Net Weight 7.2 kg (15.87 lbs) Accessories USB cover, Owner’s Manual, Specification sheet, AC cable (2.0m) x 1 Others USB 2.0 Standard-A Connector (Female) for Save/Load, Speaker preset update, Firmware update with USB memory; AC inlet x 1 with AC cord clamp Speaker Processing Fullrange A10, A12, A12M, A15, CBR10, CBR12, CBR15, Club112V, Club115V, Club215V, ClubM10V, IF211264, IF211295, IF211299, IF2112AS, IF2112M64, IF2112M95, IF2112M99, IF211564, IF211595, IF211599, IF2115AS, IF2115M64, IF2115M95, IF2115M99, IF2108, IF2205, IF2208, NSAW392, NSAW592, NSAW992, R12M, R15M, R112, R115, R215, VS4, VS6, VXC4, VXC6, VXC8, VXS5, VXS8 Subwoofer A15W, ClubSW115V, ClubSW118V, ClubSW218V, IS1112, IS1118, IS1215, IS1218, R118W, VXS10S Bi-AMP IF211264, IF211295, IF211299, IF2112AS, IF2112M64, IF2112M95, IF2112M99, IF211564, IF211595, IF211599, IF2115AS, IF2115M64, IF2115M95, IF2115M99, IF311564, IF311595, IH200064, IH200095 Technical Data Sheet 3 / 5 P
