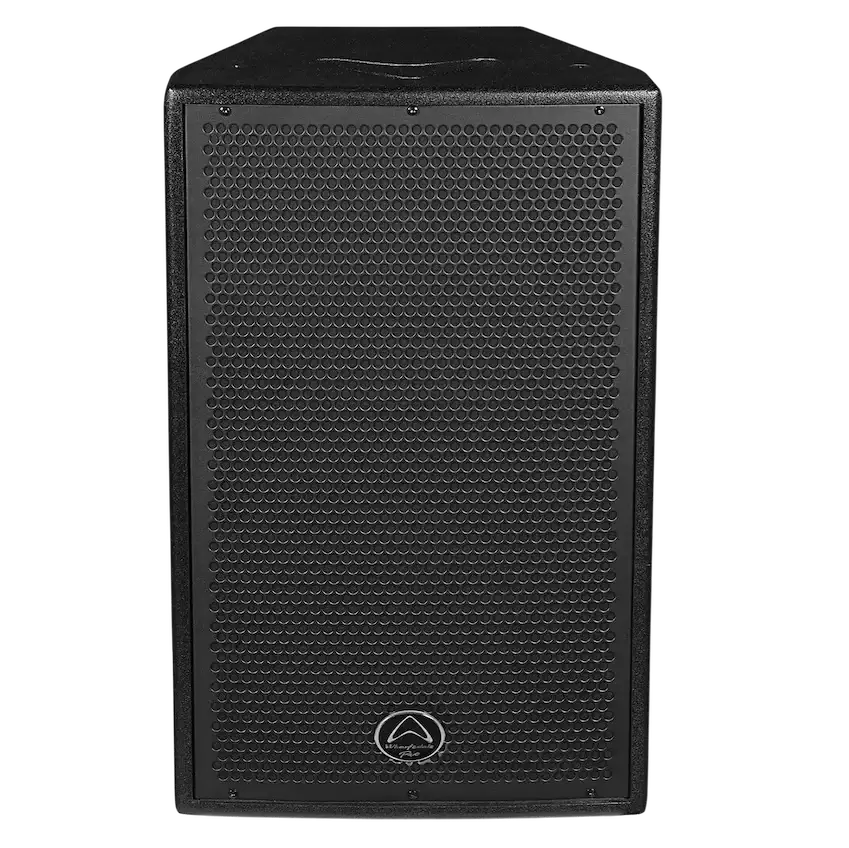

Fill any venue with powerful, crystal-clear sound using the Wharfedale Delta AXF12 : 12″ Active Speaker by Wharfedale. Built for live events, DJ sets, houses of worship, and corporate functions — this speaker delivers the headroom and clarity that professional audio demands.
Wharfedale Delta AXF12
The new DELTA-AXF models have the same solid Baltic birch plywood construction and the same custom made Wharfedale Pro drivers as their predecessors, but with the new FIR filters the sonic improvements are clear. The updated ‘AXF’ electronics are fully interchangeable with existing DELTA active models and can be quickly retro-fitted by Service engineers. AXF models are also perfectly tuned to be used with the current DELTA-AX15B and DELTA-AX18B active subwoofers.
Through both electronic and software optimisation, the new DELTA-AXF12 and AXF15 models now feature internal FIR filters using ‘DNA’ harvested from the flagship WLA active line array and monitors system development. This FIR filtering has brought independent control of magnitude and phase, more detailed equalisation and optimisation of frequency and power response. In the end….this results in highly improved system performance. The amplifiers have also been optimised, resulting in 800 W Continuous power.
Key Features
12″ two-way bi-amplified active loudspeaker
800 watts Continuous power
1600 watts Peak power
90° x 45° dispersion
2″ HF Compression driver
3″ LF voice coil
Advanced Internal FIR DSP
130.5 dB Max SPL @ 1 meter
Specifications
System Type : Active 12” 2-way Bi-Amplified
Frequency Response (+/-3 dB) : 60 Hz – 20 KHz
Frequency Range (-10 dB) : 55 Hz – 20 KHz
Calculated Maximum SPL @1m : 130.5 dB
Low Frequency Transducer – Size ( mm / inches) : 332 mm / 12″
Coil Size ( mm / inches) : 75 mm / 3″
Impedance : 4 Ω
High Frequency Transducer – Type : Compression Driver
Coil Size ( mm / inches) : 51.2 mm / 2″
Exit Size ( mm / inches) : 25 mm / 1”
Diaphragm Material : Titanium
Impedance : 8 Ω
Nominal Coverage (H x V) : 90° x 45°
Amplifier
Amplifier Design : Class D
Power Rating: 1600 W Peak (1400 W LF + 200 W HF), 800 W Continuous (700 W LF + 100 W HF)
Power On Protection : Power Switch On/Off Mute
Thermal Protection : Amplifier Shut Down. Auto Reset
Low Line Voltage Shut Down : 80% Nominal Line Voltage
Driver Protection : Independent LF and HF Limiters
DC and Short Protection : Yes
Clip Limiter : Turns on Approx 650 W Output
Limiter Indicator : Red LED
Power Indicator : Green LED
Connectors
Input A – type : Switchable Balanced Mic or Line Level Input
Input Sensitivity : Mic:-40 dBu Line:0 dBu
Maximum Input Level : 22 dBu
Input Connector : XLR 1/4〞Combo jack / 2 x RCA
Input Impedance : Balanced:20 KΩ Unbalanced:10 KΩ
Line Output Connector : Switchable LOOP/MIX Balanced pin XLR Connector
Impedance Balanced : Balanced: 200 Ω Unbalanced:100 Ω
Loop Gain : Mic:69 dB, Line:29 dB
AC Power details – Power Supply : High Efficiency Switching Mode Power Supply
AC Power Options : AC100-120 V~/220-240 V~,50/60 Hz
Hardware – Rigging : M10 x 6
Pole Mount : Dual Angle (0⁰ or 10⁰) 35 mm Pole Socket
Enclosure Material and finish : 15 mm Plywood
Colour Options : Black Paint
Grille Material & Finish : 1.5 Steel
Unpacked dimensions – Height : 640 mm / 25.2″
Width (Front) : 390 mm / 15.35″
Width (Back) : 241.2 mm / 9.5″
Depth : 373 mm / 14.69″
Packed Dimensions – Height : 745 mm / 29.3”
Width (Front) : 566 mm / 22.3”
Width (Back) : 328 mm / 12.9”
Depth : 464 mm / 18.3”
Net Weight ( kg / lbs) : 26.5 kg / 58.3 lbs
Gross Weight ( kg / lbs) : 30.0 kg / 66.0 lbs
