Add the Wharfedale CONNECT 1202FX by Wharfedale to your setup — professional audio equipment trusted by engineers, musicians, and event production crews across South Africa.
Wharfedale CONNECT 1202FX

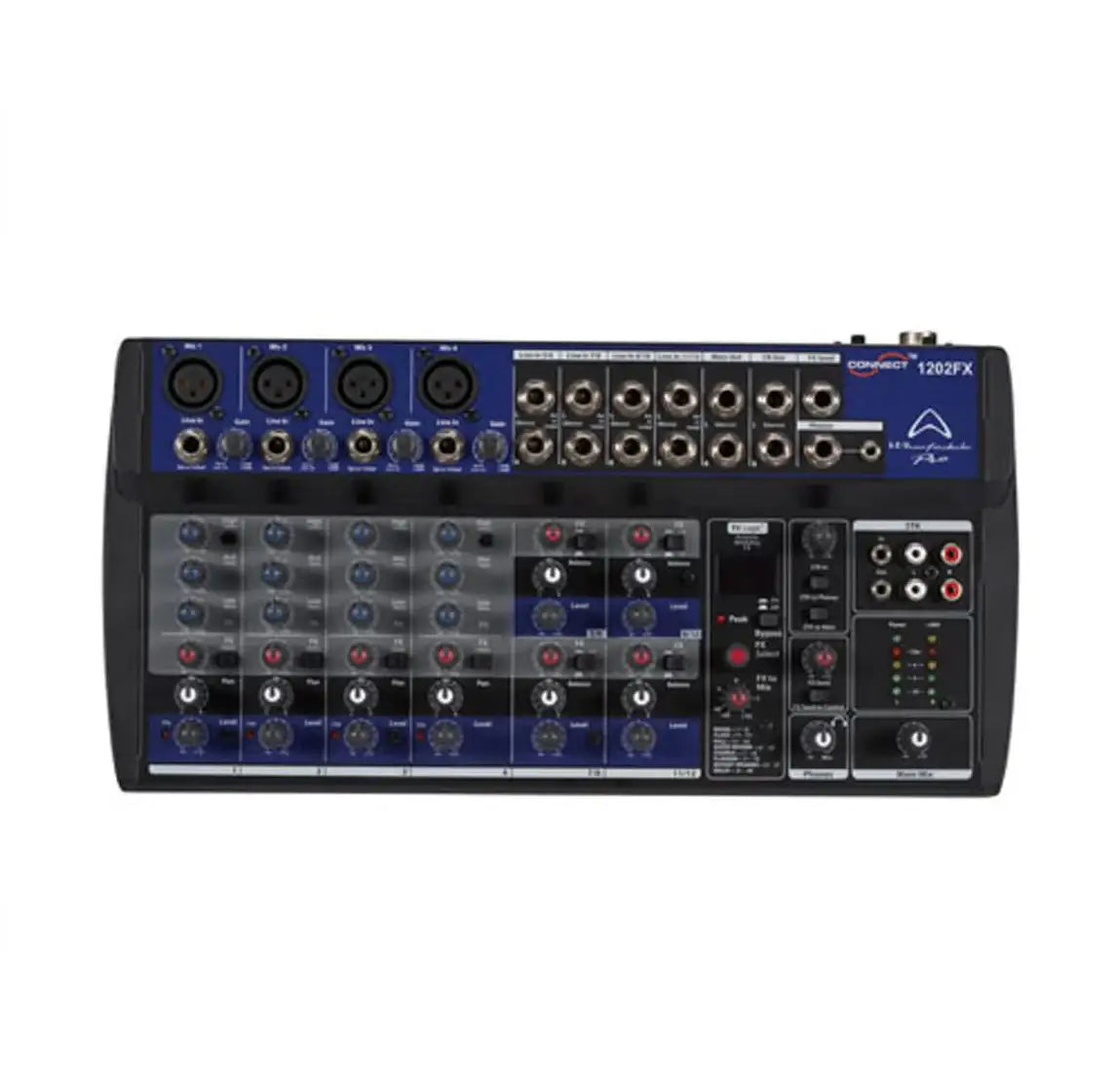

The Wharfedale Pro Connect 1202 FX is a high quality micro-mixer, suitable for a wide range of applications.
The built-in digital effect processor with 56 algorithms is ideal for home recording, live-sound and fixed installation use.
Professional big mixer features such as phantom powered, balanced XLR microphone inputs give you full functionality and great sound in an ultra compact and cost effective package. The microphone pre-amplifiers use the same high quality components and construction methods that are employed in our mid-format SL Series Mixers.
The Wharfedale Pro Connect 1202 FX features an intuitive, ergonomically designed user interface that is excellent for beginners and professionals alike. Comprehensive connectivity ensures that a Connect 1202 FX mixer can handle any situation.
| MODEL | CONNECT 1202FX |
| THD+N | <0.025% @ + 4dBu ±0.5dBu |
| MAXIMUM INPUT LEVEL | Mic +4dBu ± dBu Channel Line +25dBu± dBu Stereo Line +25dBu ± dBu 2TK IN +25dBu ± dBu |
| AC POWER OPTIONS | AC 100- 20V~ 50Hz/60Hz or AC220-240V~ 50Hz/60Hz |
| MONO INPUT CHANNEL GAIN | 50dB Variable MIC(0~-50dB) Line(-20dB~+30dB) |
| LEVEL METERS | 4-Segment LEDx2 (output of +4dBu = 0dB) Main L/R |
| FREQUENCY RESPONSE | 20Hz~20kHz± dB |
| DIMENSIONS/WEIGHT | |
| DIMENSION | 360 X 83.8 X 52.8 MM |
| WEIGHT | 1.69kg |
| INPUT CHANNEL EQ | High (+/- 5dB)±2dBu 2kHz Shelving Mid (+/- 5dB)±2dBu kHz Shelving Low (+/- 5dB)±2dBu 80Hz Shelving |
| MAXIMUM BALANCED OUTPUT | Main XLR Balanced out +26dBu ± dBu Main 1/4" Jack Balanced out +26dBu ±1dBu |
| MAXIMUM UNBALANCED | Main XLR Unbalanced out +2 dBu ± dBu Main 1/4" Jack Unbalanced out +21dBu ± dBu Headphone output 50mw±5mw @ 32ohms |
| HUM AND NOISE 20HZ-20KHZ | - 27dBu ±5dBu Mic Pre Equivalent Input Noise -85dBu ±5dBu Residual Noise |
| S/N | 78dB ±5dB @ fader max |
| FFT | -62dBv ±5dBv @ gian fader max |
| CMRR | 62dB±5dB @ kHz |
| IMPEDANCES | Mic: Balanced 6 Kohms, Unbalanced 3Kohms ±500ohms Line: Balanced 44 Kohms, Unbalanced 22Kohms ±2kohms 2TK IN: Unbalanced 0Kohms ±2kohms All other Unbalanced outputs: 00 ohms, Balanced outputs: 200ohms |
| EFFECT OUT | 56 effects: .(ROOM=r -r8); 2.(PLATE=P -P5); 3.(HALL=h -h8); 4.(GATED REVERB=g -g3); 5.(CHORUS=c -c8) 6.(FLANGRE=f -f8); 7.(ROTARY SPEAKER=s -s7); 8.(DELAY=d -d9). |
