Add the Turbosound NuQ152-AN by Turbosound to your setup — professional audio equipment trusted by engineers, musicians, and event production crews across South Africa.

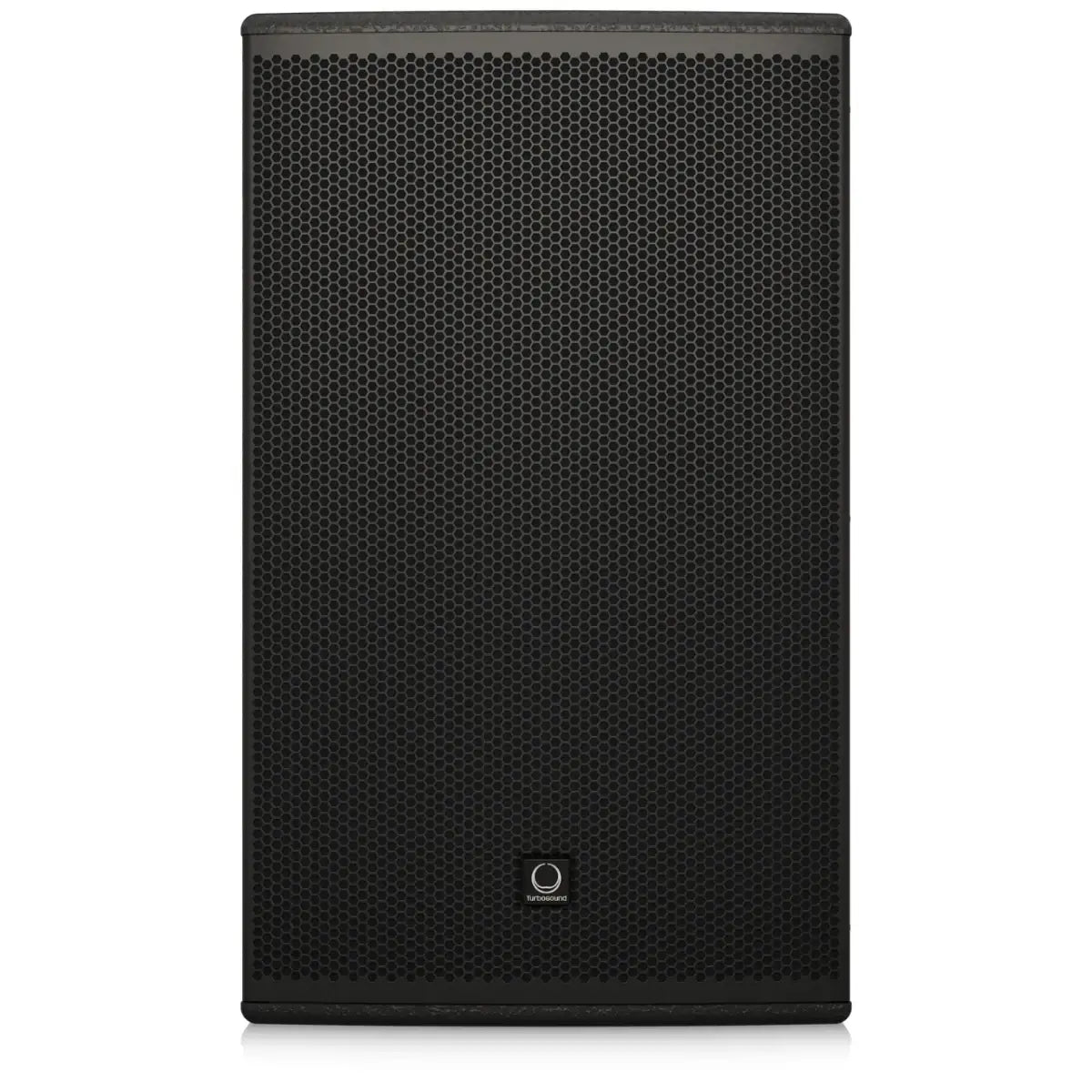

Turbosound NuQ152-AN
Product Description
NuQ152-AN
The 2-way full-range NuQ152-AN is a 2,500-watt 15″ powered loudspeaker system that is ideally suited for a wide range of portable and fixed installation speech and music sound reinforcement applications. Designed to work individually without a controller, the NuQ152-AN provides optimal performance for FOH, sidefill and delay line loudspeakers, and is an exceptional choice for wedge monitoring applications. It also offers the flexibility to accommodate venue-specific requirements for install applications.
The NuQ152-AN loudspeaker features a carbon fibre-loaded 15″ low-frequency driver with a low mass voice coil for improved transient response and an aluminium dome 1″ neodymium high-frequency compression driver, which is mounted on a 70° horizontal by 70° vertical dispersion low distortion waveguide.
Output power for the NuQ152-AN is provided by means of an efficient and lightweight Klark Teknik 2,500-Watt Class-D power amplifier. A sophisticated, but easy-to-use Klark Teknik Digital Signal Processor (DSP) provides dynamic EQ for impressive full-range response at low volume levels and transparent limiting for clarity at high output levels – and for long-term reliability.
On the rear panel of the amplifier module, the user interface’s LCD display and single rotary encoder provide intuitive access to: position compensation, user EQ control, subwoofer integration and signal routing features. In addition to the balanced XLR input, an XLR output is provided for daisy-chaining more active loudspeakers or for use with active subwoofers. An onboard USB port provides access for remote control of the NuQ152-AN via PC computer, as well as DSP firmware updates.
ULTRANET connectivity is provided by two locking etherCON * connectors. Up to 16 independent channels of 24-bit digital audio and control data are transmitted via a single CAT5 cable between compatible digital devices – including mixers, I/O stage boxes, powered loudspeakers and personal monitoring systems. Simplified cable routing and ease of setup translate directly into significant time saved during installation.
Finished in a highly durable semi-matte black paint, the trapezoidal cabinet is constructed from 15 mm (5⁄8″) birch plywood – and includes a rugged powder-coated perforated steel mesh grille. Multiple threaded rigging points are provided for suspension in any orientation. The NuQ152-FY flying yoke kit provides added flexibility in permanent install applications (available separately). The NuQ152-AN also features a 35 mm socket for standard pole mounting – plus integrated handles for convenient transport. Mains power input is provided via a Neutrik powerCON * connector.
Key Features
- 2-way full-range powered loudspeaker for portable PA and installation applications
- 2,500 Watt power featuring Klark Teknik Class-D technology
- Klark Teknik Digital Signal Processing for total system control
- ULTRANET digital audio networking connects to mixers and other sources
- Carbon fibre loaded 15″ low-frequency driver with inside/outside coil
- Aluminium dome 1″ neodymium motor compression driver
- Low distortion waveguide provides 70° H x 70° V dispersion
- Fully featured user interface with LCD display for ease of navigation
- PC remote control software downloadable at turbosound.com
- 15 mm (5/8″) birch plywood enclosure with hard wearing semi matt black paint finish
- Rugged powder-coated perforated steel mesh grille
- Integral 35 mm pole mount and handles
- Multiple internal rigging points allow bracket mount and suspension in any orientation
Architecture & Engineering Specifications
The loudspeaker shall be of the full range, two-way, powered type, consisting of one 15″ (394 mm) LF driver and one 1″ (25 mm) HF compression driver. Performance specifications of a typical production unit shall meet or exceed the following: frequency response, measured with swept sine wave input, shall be flat within ±3 dB from 55 Hz to 18 kHz and within -10 dB from 50 Hz to 20 kHz. Nominal dispersion, at -6 dB points, shall average 70° H x 70° V. Maximum amplifier output power shall be 2,500 Watts peak, independent of limiters and driver protection circuits. Maximum SPL (peak), measured at 1 metre with a music program, shall be 133 dB. Dimensions: 712 mm high x 430 mm wide x 385 mm deep (28″ x 16.9″ x 15.2″). Net weight: 23.6 kg (52.0 lbs). The loudspeaker system shall be the Turbosound NuQ152-AN. No other loudspeaker shall be acceptable unless submitted data from an independent test laboratory verifies that the above-combined performance/size specifications are equalled or exceeded.
General Specifications
System
-
Frequency Response
- 55 Hz – 18 kHz ±3 dB
- 50 Hz – 20 kHz -10 dB
- Nominal Dispersion:70° H x 70° V @ -6 dB points
- Maximum SPL: 133 dB peak
- Crossover Type: Active
-
Transducers
- 1 x 15″ (393.5 mm) LF driver
- 1 x 1″ (25.4 mm) HF compression driver
- Limiter: Independent HF, LF, peak and rms
Amplifier
- Maximum Output Power*: 2,500 W
- Type: Class-D
- Protection: Short circuit, thermal
Connectors
- Input/link: 1 x Combo Jack/XLR 1 x XLR
- Ultranet input/link: 2 x RJ45
- Mains Supply: Neutrik powerCON 20A†
Controls
- DSP: Rotary push-encoder and level control Buttons for Process, Setup, Exit, Enter
User DSP Functions
- Factory EQ Presets: Positioning, sound mode, FBQ
- Display: LCD 128 x 32, blue, backlit
- Delay: 0 – 300 ms
- Equalisation: High and low shelving EQ 2 x parametric EQ
- Limiter: Zero attack input limiter
- Presets: 20 total presets, 19 user-definable
- Crossover: High pass L-R 24 dB/oct
- Protection: Lock-out function for all settings
Power Supply
- Power Consumption: 90 W @ 1/8 max power
Enclosure
- Construction: 15 mm (5/8″) birch plywood
- Finish: Semi-matt black paint
- Grille: Powder-coated perforated steel
- Flying Hardware: M10 x 8 points
- Dimensions (WxDxH): 430mm x 385mm x 712mm / 16.9″ x 15.2″ x 28″
- Net Weight: 23.6kg / 52lbs
