Add the Turbosound NuQ102-AN by Turbosound to your setup — professional audio equipment trusted by engineers, musicians, and event production crews across South Africa.

Product Features

2 way full range powered loudspeaker for portable PA applications
600 Watt power featuring KLARK TEKNIK Class-D technology
KLARK TEKNIK Digital Signal Processing for total system control
ULTRANET digital audio networking connects to mixers and other sources
10" low frequency driver with low mass voice coil for improved transient response
Aluminium dome 1" neodymium motor compression driver
Rotatable converging elliptical waveguide provides 100° H x60° V dispersion
Fully featured user interface with LCD display for ease of navigation
PC remote control software downloadable at turbosound.com
12 mm (1/2") birch plywood enclosure with hard wearing semi matt black paint finish
Rugged powder coated perforated steel mesh grille
Integral 35 mm pole mount and handles
Multiple internal rigging points allow bracket mount and suspension in any orientation
Mains input on Neutrik powerCON connector

NuQ102-AN

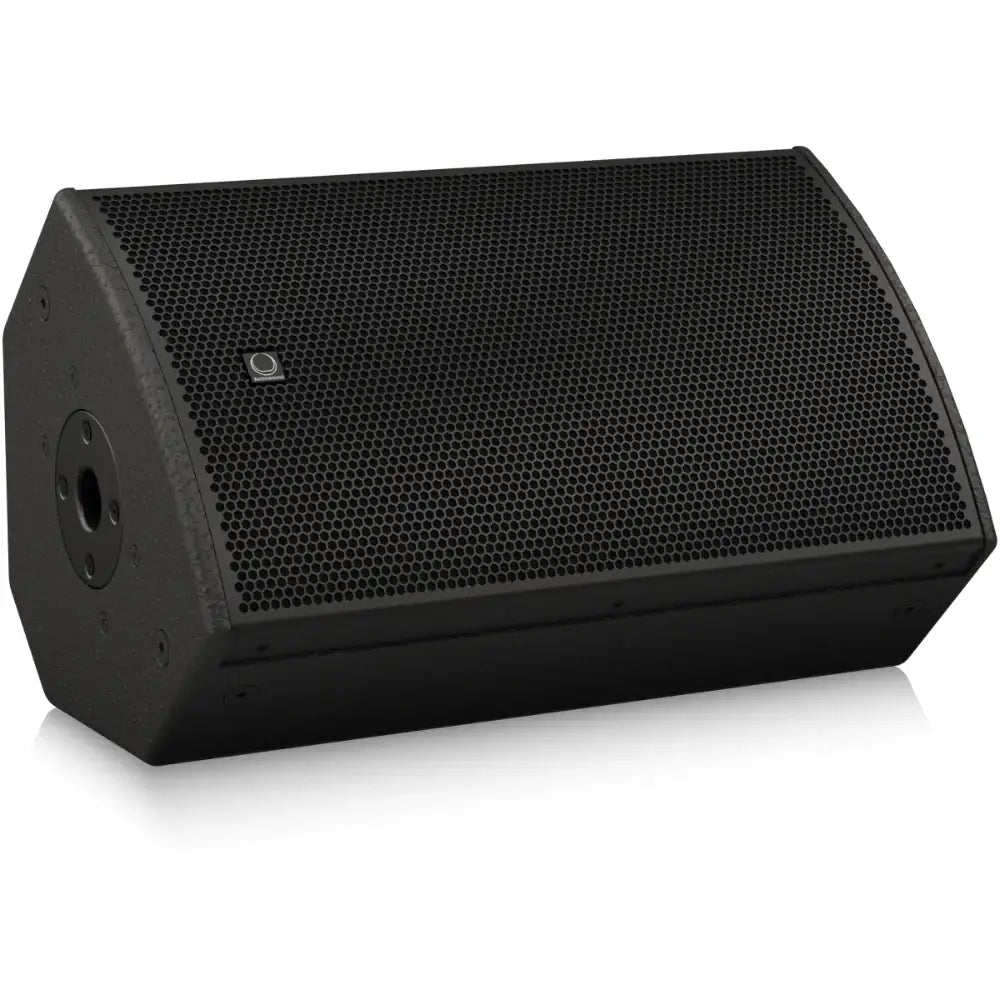

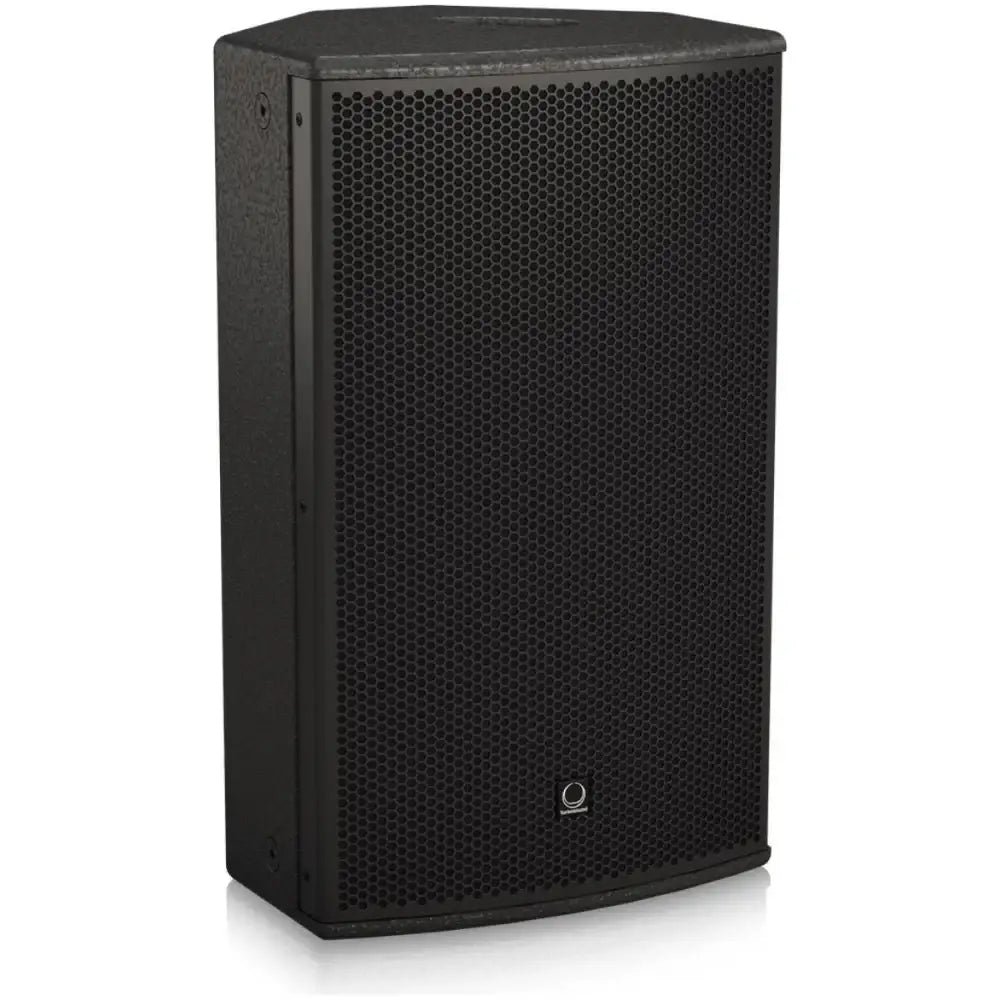

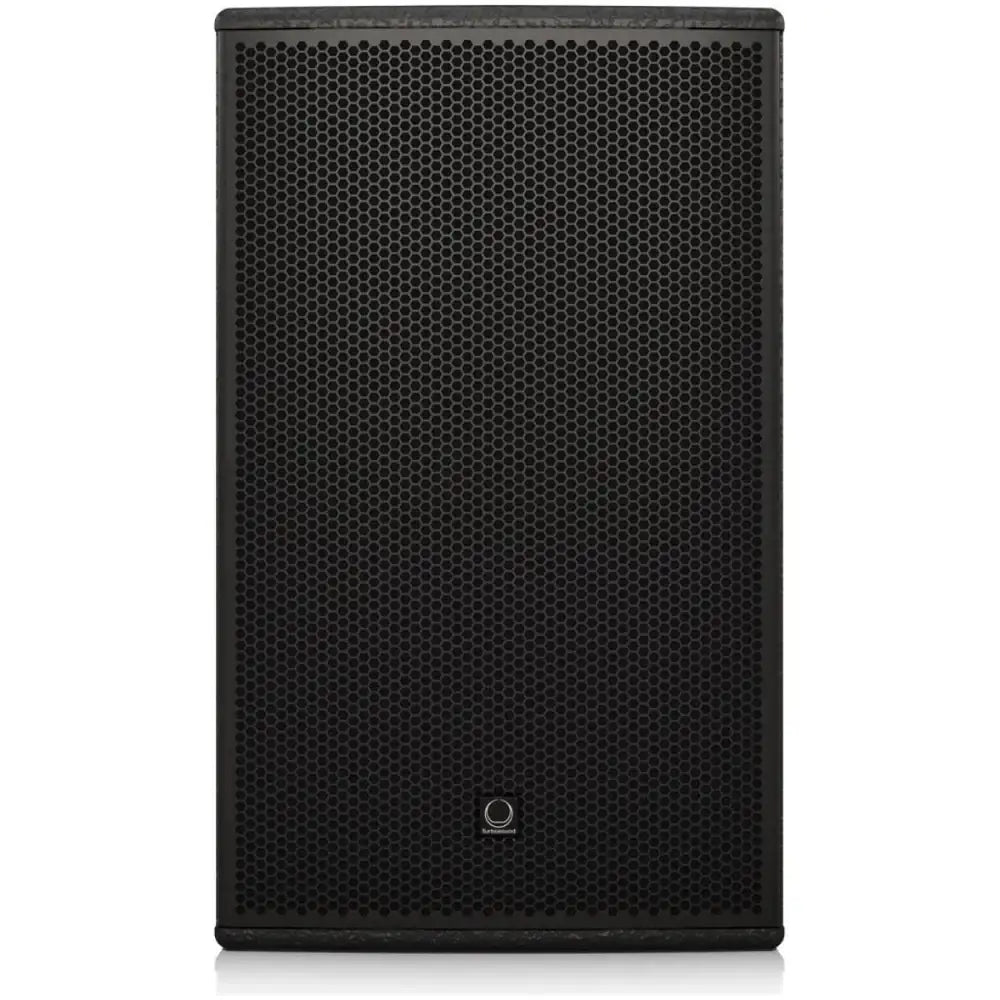

The 2-way full range NuQ102-AN is a 600 Watt 10" powered loudspeaker system that is ideally suited for a wide range of portable and fixed installation speech and music sound reinforcement applications. Designed to work individually without a controller, the NuQ102-AN provides optimal performance for FOH, sidefill and delay line loudspeakers, and is an exceptional choice for wedge monitoring applications. It also offers the flexibility to accommodate venue-specific requirements for install applications.

The NuQ102-AN loudspeaker features a 10" low frequency driver with a low ass voice coil for improved transient response and an aluminium dome 1" neodymium high frequency compression driver, which is mounted on a rotatable 100° horizontal by 60° vertical dispersion converging elliptical waveguide.

Output power for the NuQ102-AN is provided by means of an efficient and lightweight Klark Teknik 600-Watt Class-D power amplifier. A sophisticated, but easy to use Klark Teknik Digital Signal Processor (DSP) provides dynamic EQ for impressive full range response at low volume levels and transparent limiting for clarity at high output levels – and for long-term reliability.

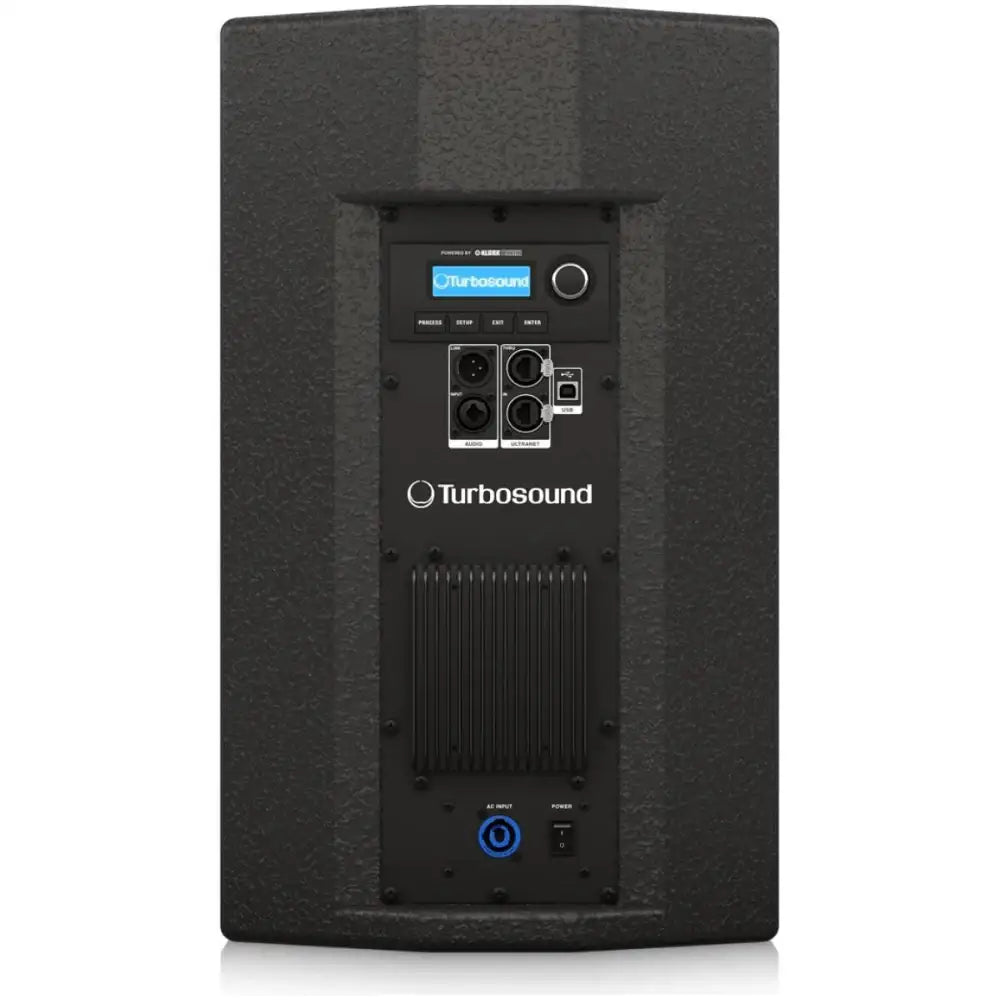

On the rear panel of the amplifier module, the user interface’s LCD display and single rotary encoder provide intuitive access to: position compensation, user EQ control, subwoofer integration and signal routing features. In addition to the balanced XLR input, an XLR output is provided for daisy-chaining more active loudspeakers or for use with active subwoofers. An onboard USB port provides access for remote control of the NuQ102-AN via PC computer, as well as DSP firmware updates.

ULTRANET connectivity is provided by two locking etherCON * connectors. Up to 16 independent channels of 24-bit digital audio and control data are transmitted via a single CAT5 cable between compatible digital devices – including mixers, I/O stage boxes, powered loudspeakers and personal monitoring systems. Simplified cable routing and ease of setup translate directly into significant time saved during installation.

Finished in a highly durable semi matt black paint, the trapezoidal cabinet is constructed from 12 mm (½") birch plywood – and includes a rugged powder coated perforated steel mesh grille. Multiple threaded rigging points are provided for suspension in any orientation. The NuQ102-FY flying yoke kit, NuQ102-SB swivel bracket, and NuQ102-EB swivel extender provide added flexibility in permanent install applications (available separately). The NuQ102-AN also features a 35 mm socket for standard pole mounting – plus integrated handles for convenient transport. Mains power input is provided via a Neutrik powerCON * connector.

Architecture & Engineering Specifications

The loudspeaker shall be of the full range, two-way, powered type, consisting of one 10" (261 mm) LF driver and one 1" (25 mm) HF compression driver. Performance specifications of a typical production unit shall meet or exceed the following: frequency response, measured with swept sine wave input, shall be flat within ±3 dB from 55 Hz to 18 kHz and within -10 dB from 50 Hz to 20 kHz. Nominal dispersion, at -6 dB points, shall average 100° H x 60° V, rotatable. Maximum amplifier output power shall be 600 Watts peak, independent of limiters and driver protection circuits. Maximum SPL (peak), measured at 1 metre with music program, shall be 122 dB. Dimensions: 525 mm high x 318 mm wide x 281 mm deep (20.7" x 12.5" x 11.1"). Net weight: 13.7 kg (30.2 lbs). The loudspeaker system shall be the Turbosound NuQ102-AN. No other loudspeaker shall be acceptable unless submitted data from an independent test laboratory verifies that the above combined performance / size specifications are equaled or exceeded.

Specification

System

Frequency Response	55 Hz – 18 kHz ±3 dB 50 Hz – 20 kHz -10 dB
Nominal Dispersion	100° H x 60° V @ -6 dB points, rotatable
Maximum SPL	122 dB peak
Crossover Type	Active
Transducers	1 x 10" (261.5 mm) LF driver 1 x 1" (25.4 mm) HF compression driver
Limiter	Independent HF, LF, peak and rms

Amplifier

Maximum Output Power*	600 W
Type	Class-D
Protection	Short circuit, thermal

Connectors

Input/link	1 x Combo Jack/XLR 1 x XLR
Ultranet input/link	2 x RJ45
Mains Supply	Neutrik powerCON 20A†

Controls

DSP	Rotary push-encoder and level control Buttons for Process, Setup, Exit, Enter

User DSP Functions

Factory EQ Presets	Positioning, Sound mode, FBQ
Display	LCD 128 x 32, blue, backlit
Delay	0 - 300 ms
Equalisation	High and low shelving EQ 2 x parametric EQ
Limiter	Zero attack input limiter
Presets	20 total presets, 19 user-definable
Crossover	High Pass L-R 24 dB/oct
Protection	Lock-out function for all settings

Ultranet Digital Network

Digital processing
System
Cabling

Power Supply

Power consumption	80 W @ 1/8 max power
Voltage (fuses)

Enclosure

Dimensions HWD	525 x 318 x 281 mm (20.7 x 12.5 x 11.1")
Net weight	13.7kg (30.2 lbs)
Construction	12 mm (½") birch plywood
Finish	Semi matt white paint
Grille	Powder coated perforated steel
Flying hardware	M10 x 8 points; M8 x 1 point
