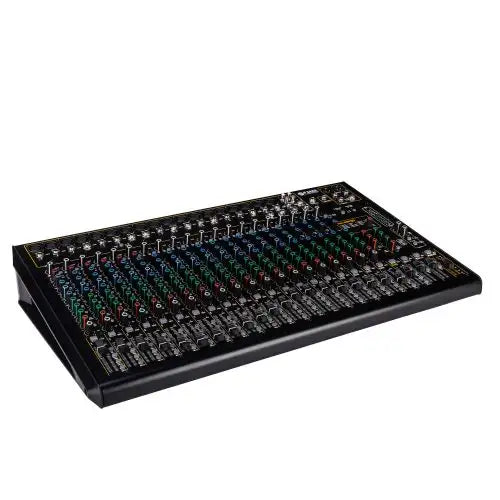

RCF F24XR

RCF F24XR

R 15,836.00
R 15,836.00
Sale Sold out
Delivery terms are listed in our shipping policy
100% Genuine New stock
VisionSounds Warranty Product-specific
2–4 Day ETA Major cities
5–7 Day ETA Outlying areas
  • Johannesburg, Cape Town, Durban, Pretoria: 2–4 business days after payment confirmation.
  • Secondary cities and towns: 3–6 business days.
  • Outlying and remote areas: 5–7 business days.
  • Nationwide delivery options and terms are listed in our shipping policy.

Delivery timelines begin once full payment has been confirmed. All orders are shipped via fast, insured courier. You will receive a tracking number by email once your order is dispatched. View full shipping policy →

  • EFT (Electronic Funds Transfer) — Direct bank transfer from any South African bank account. No additional fees. Orders confirmed within 1 business day of payment reflecting.
  • Cross Border Transfer — For customers in SADC neighbouring countries (Lesotho, Zimbabwe, Mozambique, Namibia, Botswana, Eswatini). Invoices settle in ZAR; direct delivery is within South Africa only, and cross-border orders are handled on a collection/freight-forwarder basis.
  • Wire Transfer — For international customers outside the SADC region. Proforma invoices are processed in ZAR value; direct delivery is within South Africa only, with collection/freight-forwarder arrangements required for export orders.

Orders are confirmed once payment reflects. Banking details are provided in your order confirmation email. View payment details →

  • This item is listed as new, genuine, and includes VisionSounds warranty support.
  • Warranty terms vary by product and are handled by VisionSounds. Contact us to confirm the exact coverage before ordering.
  • Returns accepted within 7 days of receipt in original, unused condition with original packaging.
  • Faulty or incorrect items: VisionSounds covers return shipping costs.

View returns & refund policy →

Add the RCF F24XR by RCF to your setup — professional audio equipment trusted by engineers, musicians, and event production crews across South Africa.

  • STURDY METAL CHASSIS
  • PRO DSP FX ONBOARD WITH 16 PRESETS
  • STEREO RECORDING AND PLAYBACK VIA USB PORTS
  • BALANCED MAIN OUTPUT AUDIO PATH FROM INPUT TO OUTPUT

Features

  • Sturdy Metal Chassis
  • PRO DSP FX onboard with 16 presets
  • Stereo Recording and Playback via USB ports
  • Balanced main output audio path from input to output
  • 6 single control compressors
  • Mono channels provided with 3-band EQ, with selectable mid frequency
  • Robust, compact and attractive design.
  • Designed and Engineered in Italy
  • Internal Universal Power Supply
  • 60 mm faders
The F 24XR features 18 mic preamp inputs, 16 mono line inputs, 4 stereo line inputs, multi-FX, 6 single control compressors, stereo recording and playback via USB port, balanced main output (Stereo XLR + TRS) . The mono channels are provided with 3-band EQ, with selectable mid frequency, and 3-band for stereo channels. The mixer features 16 PRO DSP internal presets, two stereo output busses and 4 aux sends (2 pre, 1 pre/post, 1 post). It also features 60mm faders.

Specifications

SPECIFICATIONS
Electrical specifications
FREQUENCY RESPONSE:
20 Hz ÷ 20 kHz
THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED):
<0,02% A-Weighted
POWER SUPPLY:
Internal
VOLTAGE REQUIREMENTS:
100 V – 240 V
POWER CONSUMPTION (W):
70 W
Inputs
GAIN RANGE:
0 dB ÷ -50 dB
GAIN SELECTION:
20 dB ÷ -30 dB
HI-Z LINE INPUTS IMPEDANCE (MOHM):
1 Mohm
HI-Z LINE INPUTS:
1
INPUT NOISE LEVEL (DBU A-WEIGHTED):
-124 dBu A-Weighted
MIC INPUTS IMPEDANCE (KOHM):
14 kohm
LINE:
16
LINE INPUT IMPEDANCE (KOHM):
21 kohm
LOW CUT:
80 Hz
MIC:
18
PHANTOM POWER +48V:
Yes
STEREO LINE:
4
STEREO LINE GAIN SELECTION:
20 dB ÷ -30 dB
STEREO LINE INPUT IMPEDANCE:
14 kohm
Outputs
MAIN MIX:
1
CONTROL ROOM:
Yes
FX SEND:
1
AUX SEND:
3
AUX OUTPUT:
4
GROUP OUT:
2
PHONES:
1
Outputs specifications
MAIN OUT LEVEL (DBU):
28 dBu
AUX OUT LEVEL (DBU):
28 dBu
GROUP OUT LEVEL (DBU):
28 dBu
PHONES OUT IMPEDANCE (OHM):
150 ohm
PHONES OUT LEVEL (DBM):
10 dBm
Compressors
RCF COMPRESSORS:
n°6 Single Control Compressors on Channels 1 to 6
EQ
INPUT CHANNELS EQ:
1 Semi Parametric / 2 Shelving
DESCRIPTION:
High: +/-15 dB @ 10 kHz Shelving Mid: +/-15 dB @ Freq. sel. from 100Hz to 8kHz – Bell Low: +/-15 dB @ 100 Hz Shelving
Auxiliary sends
AUX:
2 PRE / 1 PRE/POST
FX POST:
1
Internal Effects
SEND EFFECTS:
1
USB audio
TYPE:
B
PLAY TRK:
2
REC TRK:
2
SUPPORTED SAMPLE RATE (KHZ):
44.1, 48.0 kHz
Other features
FOOTSWITCH:
Yes
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Metal
COLOR:
Black
Size
DEPTH:
406 mm / 15.98 inches
HEIGHT:
107 mm / 4.21 inches
WEIGHT:
9.5 kg / 20.94 lbs
WIDTH:
720 mm / 28.35 inches
Shipping informations
PACKAGE DEPTH:
524 mm / 20.63 inches
PACKAGE HEIGHT:
201 mm / 7.91 inches
PACKAGE WEIGHT:
12.5 kg / 27.56 lbs
PACKAGE WIDTH:
759 mm / 29.88 inches
