Add the RCF F10XR by RCF to your setup — professional audio equipment trusted by engineers, musicians, and event production crews across South Africa.

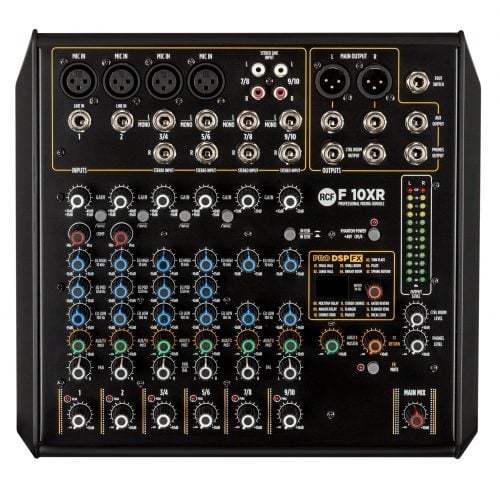

F 10XR

10-CHANNEL MIXING CONSOLE WITH MULTI-FX & RECORDING

STURDY METAL CHASSIS
PRO DSP FX ONBOARD WITH 16 PRESETS
STEREO RECORDING AND PLAYBACK VIA USB PORT
BALANCED MAIN OUTPUT AUDIO PATH FROM INPUT TO OUTPUT

Sturdy Metal Chassis
PRO DSP FX onboard with 16 presets
Stereo Recording and Playback via USB port
Balanced main output audio path from input to output
2 single control compressors
Mono channels provided with 3-band EQ. 2-band EQ on stereo channels.
Robust, compact and attractive design.
Designed and Engineered in Italy
External Universal Power Supply

The F 10XR features 4 Mic Preamp Inputs, 2 Mono Line Inputs, 4 Stereo Line Inputs plus multi-FX and Recording via USB port, with balanced +28dB main output (Stereo XLR + TRS) and 2 single control compressors. The Mono channels are provided with 3-band EQ and Stereo with 2-band. The mixer features 16 PRO DSP internal FX presets and an Aux send (post fader) with rotary knob control.

PART NUMBER:

17140089
F 10XR
EAN 8024530016142

ENHANCED ANALOG MIXING FLEXIBILITY

Premium RCF next-generation F Series mixers stages high-quality sound in five formats ranging from 6 to 24 channels. Aesthetically pleasing panel and high contrast graphics, premium quality connections and easy routing make it possible to mix your music with minimal technical expertise and the best results. Housed in a sturdy metal chassis, each mixer builds on a fully balanced and low noise audio path from input to output, with single control compressors* to limit signal peaks and a modern sounding EQ.

STATE OF THE ART EQ

State-of-the-art 3 band EQ on mono channels,
2 bands EQ on stereo channels for precise and exquisitely transparent shaping of sound.

HIGH QUALITY PREAMPLIFIERS

High quality preamplifiers with phantom power, inspired by the E-Series Mixers, offer high quality sound and dynamics. Line level signals are less noisy when connected using the separate line input jack socket.

Learn more about all the features and characteristics of the series.

SPECIFICATIONS

Electrical specifications

FREQUENCY RESPONSE:

20 Hz ÷ 20 kHz

THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED):

<0,02% A-Weighted

POWER SUPPLY:

External

VOLTAGE REQUIREMENTS:

100 V - 240 V

POWER CONSUMPTION (W):

18 W

Inputs

GAIN RANGE:

0 dB ÷ -50 dB

GAIN SELECTION:

20 dB ÷ -30 dB

INPUT NOISE LEVEL (DBU A-WEIGHTED):

-124 dBu A-Weighted

MIC INPUTS IMPEDANCE (KOHM):

14 kohm

LINE:

LINE INPUT IMPEDANCE (KOHM):

21 kohm

LOW CUT:

80 Hz

MIC:

PHANTOM POWER +48V:

Yes

STEREO LINE:

STEREO LINE GAIN SELECTION:

20 dB ÷ -30 dB

STEREO LINE INPUT IMPEDANCE:

15 kohm

Outputs

MAIN MIX:

CONTROL ROOM:

Yes

FX SEND:

AUX OUTPUT:

PHONES:

Outputs specifications

MAIN OUT LEVEL (DBU):

28 dBu

AUX OUT LEVEL (DBU):

28 dBu

PHONES OUT IMPEDANCE (OHM):

150 ohm

Compressors

RCF COMPRESSORS:

n° 2 Single Control compressors on channels 1&2

INPUT CHANNELS EQ:

2 Shelving / 1 Generic

DESCRIPTION:

High:+/-15 dB @ 10 kHz Shelving Mid:+/-15 dB @ 1,250 kHz Bell Low:+/-15 dB @ 100 Hz Shelving

Auxiliary sends

FX POST:

Internal Effects

SEND EFFECTS:

USB audio

TYPE:

PLAY TRK:

REC TRK:

SUPPORTED SAMPLE RATE (KHZ):

44.1, 48.0 kHz

Other features

FOOTSWITCH:

Yes

Standard compliance

CE MARKING:

Yes

Physical specifications

CABINET/CASE MATERIAL:

Metal

COLOR:

Black

Size

DEPTH:

275 mm / 10.83 inches

HEIGHT:

82 mm / 3.23 inches

WEIGHT:

2.8 kg / 6.17 lbs

WIDTH:

294 mm / 11.57 inches

Shipping informations

PACKAGE DEPTH:

345 mm / 13.58 inches

PACKAGE HEIGHT:

130 mm / 5.12 inches

PACKAGE WEIGHT:

3.8 kg / 8.38 lbs

PACKAGE WIDTH:

400 mm / 15.75 inches
