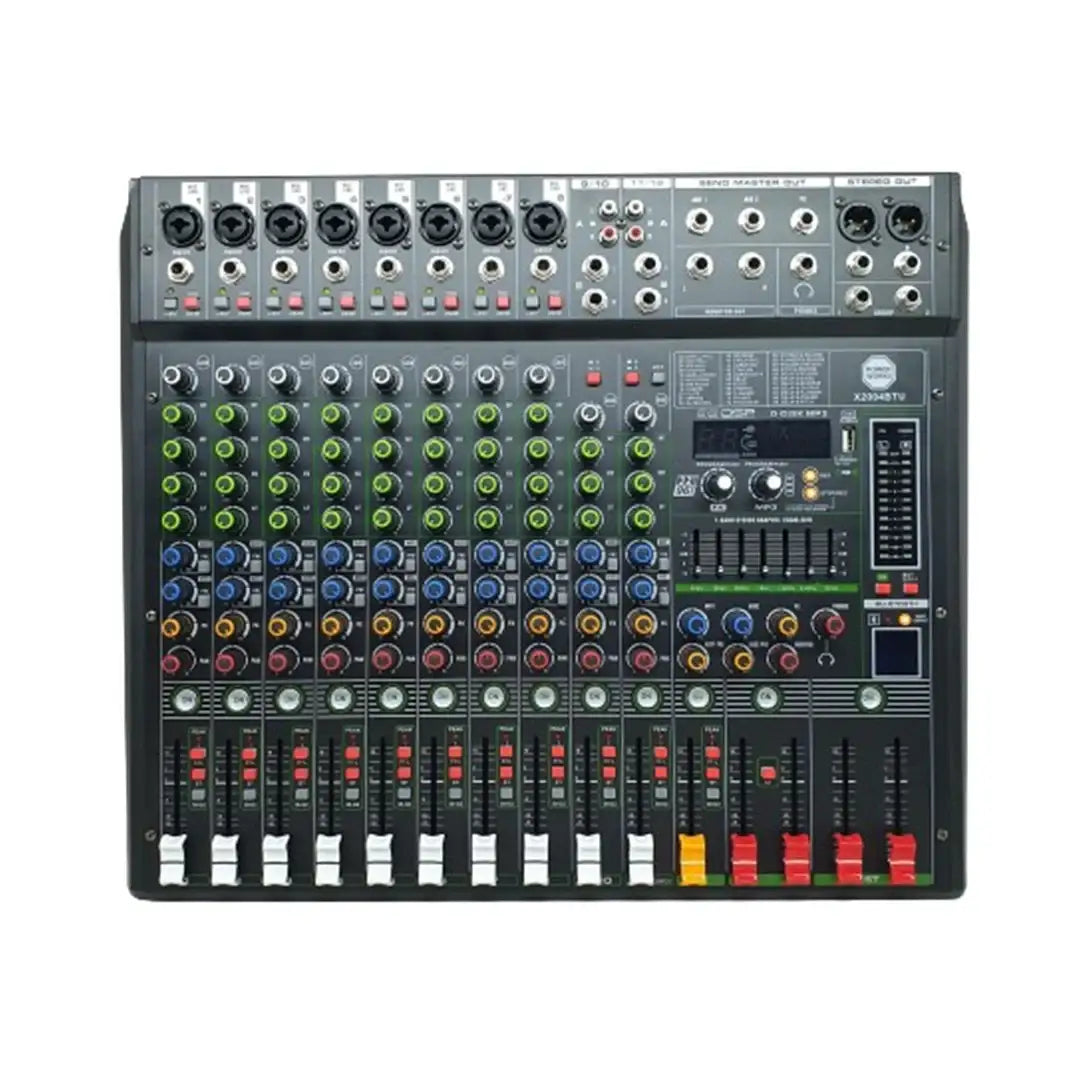

PowerWorks X2004BTU

8 Mono Channels and 2 Stereo Channels: The mixer provides ample connectivity with eight mono channels and two sets of stereo channels. This configuration supports a wide range of audio sources, making it ideal for both live sound and studio applications.

High-Quality Microphone Inputs: Each mono channel includes a balanced, low-noise microphone input. This ensures that vocals and instruments are captured with exceptional clarity and minimal interference. The addition of +48V phantom power on each input makes the mixer compatible with condenser microphones, which are often preferred for their high-quality sound reproduction.

Attenuation Switch: Each mono channel features a 26dB attenuation switch. This function allows precise control over the input levels, helping to prevent distortion and optimize signal quality. This feature is particularly useful when dealing with high-output sources or adjusting levels to match other audio components.

EQ Control: The mixer offers a 4-band equalizer for mono channels and a 3-band equalizer for stereo channels. These EQ controls provide detailed tonal shaping, allowing users to customize the sound to fit their specific needs. Whether adjusting for clarity, warmth, or any other tonal characteristic, the EQ controls give you the flexibility to fine-tune your audio.

Mute Switch: Each channel is equipped with its own mute switch. This allows for quick and convenient signal management, enabling you to silence individual channels without affecting the overall mix.

Auxiliary Outputs: The X2004BTU includes two sets of AUX outputs and one FX output. These outputs offer versatile routing options for connecting external effects processors or creating monitor mixes. This feature expands your creative possibilities by integrating additional processing or monitoring setups.

AUX Send Control: Two groups of AUX send controls are available, featuring pre-self-locking press functionality. These controls can be switched with channel faders, providing precise control over auxiliary sends. This allows for detailed adjustments and effective management of effects and monitor mixes.

High-Analysis Fader: The mixer includes 60mm stroke high-analysis faders. These faders ensure smooth and precise level control, facilitating accurate adjustments and seamless transitions between audio sources.

Built-In DSP Effects: With 99 built-in DSP effects, the mixer enhances your audio with a range of effects that add depth and dimension. These effects are designed to elevate your mixes and offer creative options for sound design.

Digital Display MP3 & Bluetooth Playback: The mixer features a built-in digital display for MP3 playback from USB drives and Bluetooth connectivity for wireless streaming. This allows for easy navigation and playback of digital audio files, making it convenient to integrate various audio sources.

Graphic Equalizer: A 7-segment stereo graphic equalizer provides further fine-tuning of the overall sound output. This equalizer helps ensure that your audio is balanced and clear across the entire frequency spectrum.

Level Display: The mixer includes a high-precision three-color electric screen and dual 12-segment flow level display. These displays offer comprehensive visual feedback on signal levels, enabling precise monitoring and control.

Monitor Output: An LR channel monitor output is included, allowing for accurate monitoring during live performances or recording sessions. This feature provides critical feedback to ensure optimal sound management and quality.

Built-In Switching Power Supply: The mixer is equipped with a built-in switching power supply that supports 110V-220V AC power. This ensures reliable performance across various power environments, making the mixer versatile for different locations and setups.
