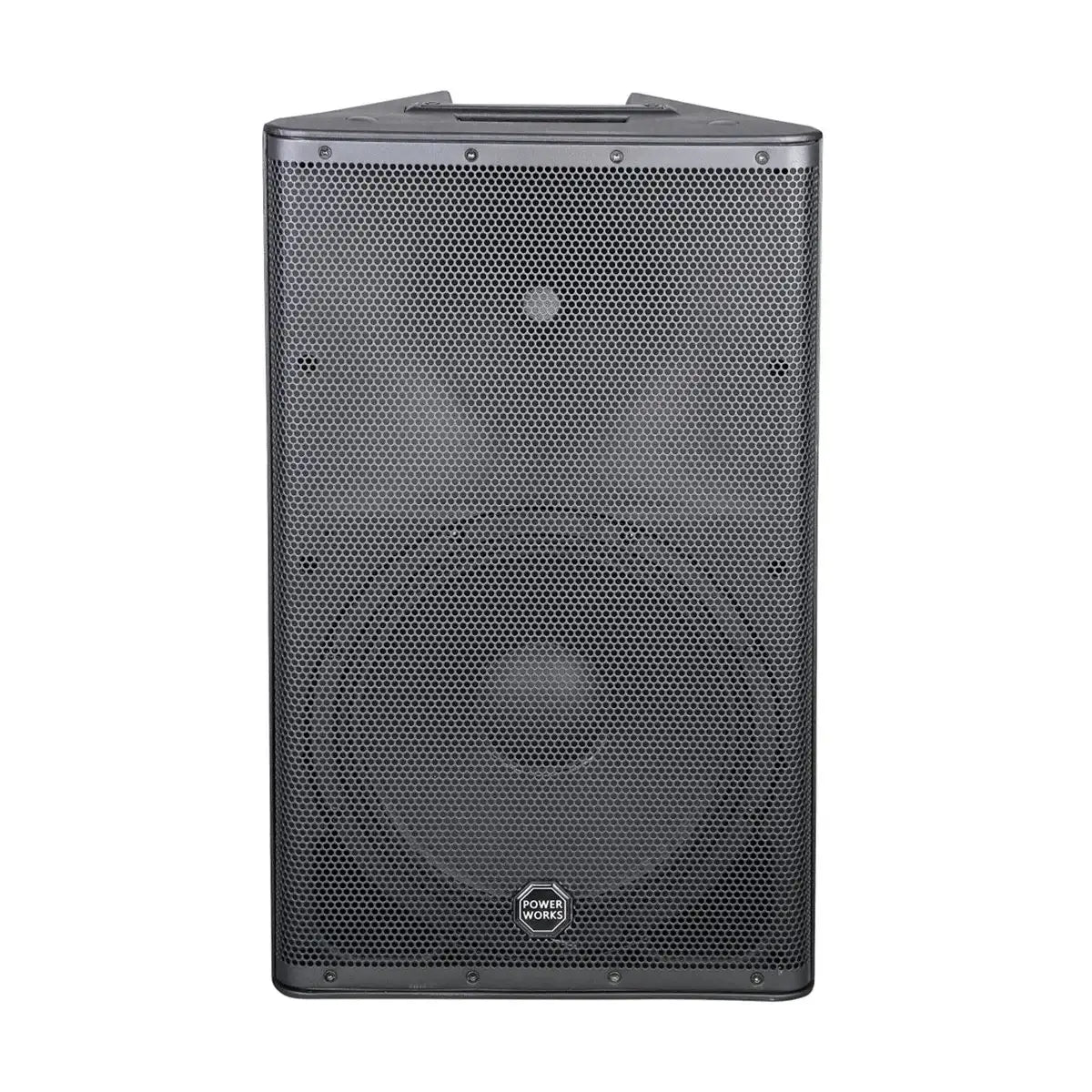

APOLLO 12PD | 12″ Active Speaker
- Low-Frequency Amplifier: 350W RMS, 700W Peak (Class-D)
- High-Frequency Amplifier: 50W RMS, 100W Peak (Class-AB)
- Frequency Response: 50Hz – 19kHz (-10dB)
- Max SPL: 134 dB
- Low-Frequency Transducer: 12″ woofer with 2.36″ voice coil
- High-Frequency Transducer: 1.35″ compression driver
- Coverage: 90° x 90° constant directivity horn
- 1x Balanced MIC/Line XLR input
- 2x 1/4″ Jack Line inputs
- 1x Mini-Jack input
- 1x RCA stereo input
- 1x XLR Thru Output (from Input 1)
- 1x XLR Link Output with mono/stereo selection
- DSP: Fully customizable DSP control
- Housing Material: Polypropylene with black anti-scratch paint
- Grille: Steel, 1mm
- Handles: 2 side handles, 1 top handle
- Pole Mount: Standard D35mm with dual tilt (0° or 7°)
- Power Supply: 220/240V, 50/60Hz
- Power Consumption: 400W average, 1200W peak
- Fuse: T6.3AL-250V
- Dimensions (WxHxD): 345 x 598 x 360 mm
- Packing Dimensions (WxHxD): 375 x 635 x 385 mm
- Weight: 15.3 kg
The PowerWorks APOLLO 12PD Active Speaker combines powerful audio performance with customizable features. With 800W peak power and an impressive SPL of 134 dB, it’s ideal for live events, DJ setups, and installations. Its durable design, versatile connectivity, and advanced DSP ensure optimal sound quality in any environment.
Powerful Performance
The PowerWorks APOLLO 12PD delivers an impressive 800W peak power, allowing it to produce robust sound suitable for various environments. With a maximum sound pressure level of 134 dB, this speaker excels in filling large venues, ensuring your audio commands attention.
Advanced DSP Technology
Equipped with digital signal processing (DSP), the Apollo 12PD offers fully customizable audio control. Users can easily adjust the sound settings to fit different acoustics, making it ideal for live events, DJ performances, or permanent installations. This feature enables quick adjustments for optimal sound quality.
Versatile Connectivity Options
This active speaker features a range of connectivity options, including a balanced XLR MIC/Line input and a Thru XLR output. It also offers a line stereo input with two 1/4” jacks, a mini-jack, and RCA connections. Each input has independent level controls, providing flexibility in connecting various audio sources.
Durable and Portable Design
The Apollo 12PD is housed in a sturdy polypropylene enclosure that is coated with black anti-scratch paint, ensuring durability. Its ergonomic design includes handles on the sides and top, facilitating easy transport and positioning for any event.
Efficient Amplification
Powering the speaker is a Class-D 350W RMS amplifier for the low-frequency driver, along with a Class-AB 50W RMS amplifier for the high-frequency driver. This combination guarantees efficient sound reproduction while maintaining excellent performance across the frequency range.
Wide Frequency Response
The speaker features a frequency response range of 50Hz to 19kHz, enabling it to deliver rich and detailed sound quality. The constant directivity horn provides 90° x 90° coverage, ensuring even sound distribution across a wide area, enhancing the listening experience for all attendees.
Professional Aesthetic
The front LED logo can be switched on or off, offering a professional look that suits various event settings. This feature enhances the overall aesthetic while ensuring the speaker fits seamlessly into any audio setup.
Flexible Installation Options
The APOLLO 12PD is designed for versatility, compatible with standard D35mm speaker poles for elevated setups. Additionally, it includes flyable hardware options, allowing for various installation configurations, making it adaptable to any performance environment.
