Feel every bass note with the HK Audio LINEAR 9 118 SUB BA by HK. Engineered to complement full-range systems with deep, controlled low-frequency output that moves crowds and fills venues.

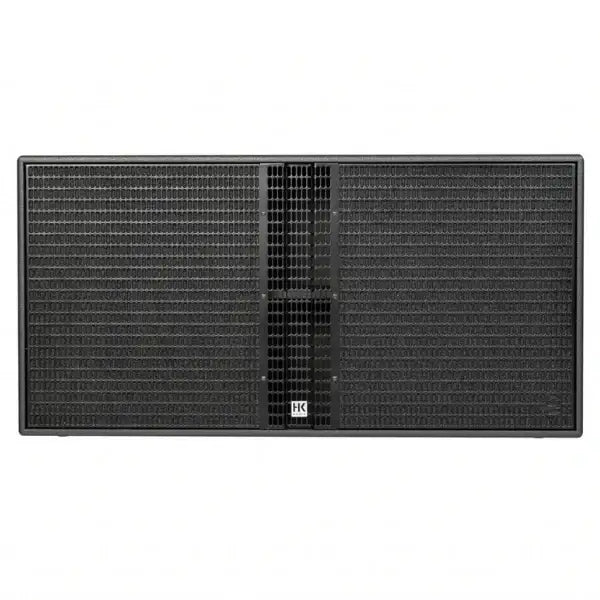

HK Audio LINEAR 9 118 SUB BA
| Max. SPL @ 10% THD | 134 dB half space (40 Hz – 110 Hz averaged) |
| Max. SPL peak @ 10 % THD | 136 dB half space |
| Frequency response +/-3 dB | 38 Hz – X-over |
| Frequency response -10 dB | 31 Hz – X-over |
| Power amp output (RMS) | 1100 W |
| Amp type | Class D |
| LF driver | 1x 18″, 4″ voice coil |
| Low-/mid speaker | – |
| HF driver | – |
| Horn directivity | – |
| Active crossover frequency | – |
| Maximum input level | +20 dBu |
| Analog inputs | 2x XLR combo balanced |
| Analog thru | 2x XLR balanced |
| DSP Out | balanced |
| Network port | Ethercon RJ45, 1x In, 1x Thru |
| Filter presets | Front, Cardioid 1:1, Cardioid 2:1, Remote |
| Remote software | DSP CONTROL (Windows, macOS) |
| DSP functions | Fully parametric 10-band EQ with variable filter characteristics, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute |
| Sample rate | 96 kHz |
| System latency | Less than 2.6 ms |
| Mains connector | 1x Powercon NAC3 In, 1x Powercon NAC3 Thru, 100–240 V |
| Power consuption | 1.9 A / 100–240 V nominal according to EN 62368-1 |
| Clustering angle | – |
| Angles up (Monitor angle) | – |
| Pole mount | 2x M20 |
| Rigging points | – |
| Carrying handles | 8x MultiGrip |
| Housing | Birch multiplex |
| Finish | PU coating black |
| Front grille | 2 mm metal grille backed with black acoustic foam |
| Dimensions (WxHxD) | 111 x 56 x 69 cm 43-9/32 x 22-3/64 x 27-11/64″ |
| Weight | 63.5 kg / 139.9 lbs |
