Add the HK Audio LINEAR 9 112 XA by HK to your setup — professional audio equipment trusted by engineers, musicians, and event production crews across South Africa.

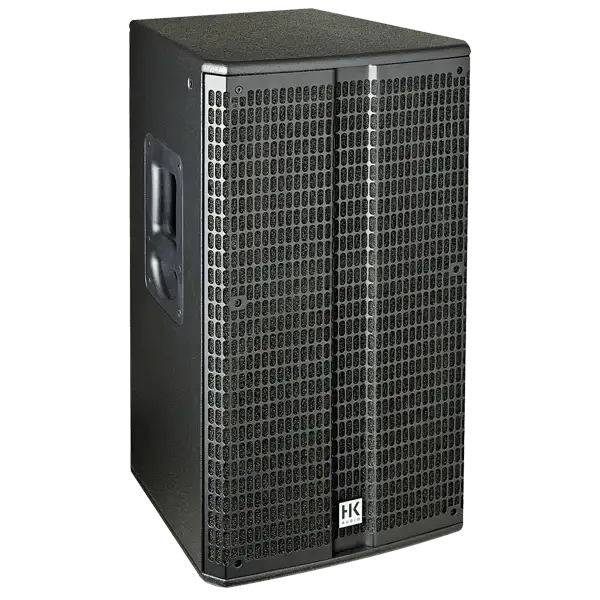

HK Audio LINEAR 9 112 XA
Features
- Multipurpose point-source loudspeaker, deployable on a tripod, as a stage monitor, as a front-fill, and as a mid-high-unit in ground-stacked and flown PA systems
- 70° x 50° CD-Horn, rotatable by 90°
- 12″ bass/ midrange speaker
- 1″ HF driver with a 1.7″ voice coil
- 60 dB FIR crossover, 1.6 kHz cutoff
- DSP controller on board for remote management and network connectivity
- Factory presets for typical use cases plus user-programmable presets
- Windows und macOS DSP CONTROL software
- Overall output power: 700 watts peak (Class-D, biamped)
- Frequency response +/- 3 dB: 67 Hz – 19 kHz
- 131 dB max. SPL peak (half-space)
- PowerCon power connector and PowerCon link power outlet
- PU-coated birch-multiplex enclosure
- Made in Germany
Here is the cleaned-up, professionally formatted specification sheet for your audio gear. I've stripped out the broken HTML code and organized it into a clean, easy-to-read layout.
Technical Specifications
Acoustic Performance
Max. SPL @ 10% THD: 128 dB half space (70 Hz – 12 kHz averaged)
Max. SPL Peak @ 10% THD: 131 dB half space
Frequency Response +/-3 dB: 67 Hz – 19 kHz
Frequency Response -10 dB: 62 Hz – 20 kHz
Amplifier & Drivers
Power Amp Output (RMS): 700 W
Amp Type: Class D – biamped
LF Driver / Low-Mid Speaker: 1x 12″ with 2.5″ voice coil
HF Driver: 1″ with 1.7″ voice coil
Horn Directivity: 70° x 50° CD horn, rotatable
DSP & Electronics
Active Crossover Frequency: 1.6 kHz FIR X-over with 60 dB/oct.
Maximum Input Level: +20 dBu
Sample Rate: 96 kHz
System Latency: Less than 2.6 ms
Filter Presets: Flat, Monitor, Low Cut, Remote
Remote Software: DSP CONTROL (Windows, macOS)
DSP Functions: Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
Connectivity
Analog Inputs: 1x XLR combo balanced
Analog Thru: 1x XLR balanced
DSP Out: 1x XLR
Network Port: Ethercon RJ45 (1x In, 1x Thru)
Mains Connector: 1x Powercon NAC3 In, 1x Powercon NAC3 Thru (100–240 V)
Power Consumption: 1 A / 100–240 V nominal according to EN 62368-1
Enclosure & Hardware
Housing: Birch multiplex
Finish: PU coating black
Front Grille: 2 mm metal grille backed with black acoustic foam
Carrying Handles: 1x SingleGrip, 1x MultiGrip
Pole Mount: DuoTilt 3°/7°
Angles Up (Monitor angle): 30°
Rigging Points: 5x M8 (AP-8)
Dimensions (WxHxD): 37 x 67 x 31 cm (14-9/16 x 26-3/8 x 12-13/64″)
Weight: 20.5 kg / 45.2 lbs
