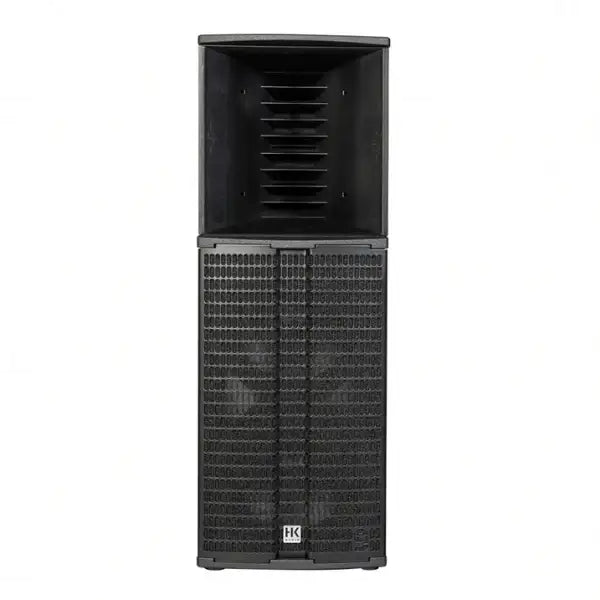

HK Audio LINEAR 9 210 LTA
HK Audio LINEAR 9 210 LTA
In stock
Couldn't load pickup availability
Johannesburg & Pretoria: 2-3 business days
Cape Town: 2-3 business days
Durban: 3-4 business days
Other major cities: 3-5 business days
Remote & rural areas: 5-7 business days
Timeframes are measured from dispatch, not from order placement. Stocked items are dispatched within 1 business day of payment confirmation. Specialist and indent items are confirmed with a written dispatch date before your order is processed. Free nationwide delivery via insured courier.
View full shipping policy →
- EFT (Electronic Funds Transfer) — Direct bank transfer from any South African bank account. No additional fees. Orders confirmed within 1 business day of payment reflecting.
- Cross Border Transfer — For customers in SADC neighbouring countries (Lesotho, Zimbabwe, Mozambique, Namibia, Botswana, Eswatini). Invoices settle in ZAR; direct delivery is within South Africa only, and cross-border orders are handled on a collection/freight-forwarder basis.
- Wire Transfer — For international customers outside the SADC region. Proforma invoices are processed in ZAR value; direct delivery is within South Africa only, with collection/freight-forwarder arrangements required for export orders.
Orders are confirmed once payment reflects. Banking details are provided in your order confirmation email. View payment details →
Supplied as an independent parallel import. Warranty is provided directly by VisionSounds — warranty claims are handled by us, not the manufacturer. This is in addition to your rights under the Consumer Protection Act, including the six-month implied warranty of quality.
Returns accepted within 30 days of receipt in the condition supplied, with all original packaging and accessories.
Faulty or incorrect items: free return shipping covered by VisionSounds.
Change of mind returns: customer responsible for return shipping costs.
No restocking fees. Refunds processed within 7 business days of inspection.
View returns & refund policy →
Add the HK Audio LINEAR 9 210 LTA by HK to your setup — professional audio equipment trusted by engineers, musicians, and event production crews across South Africa.
Features
- Constant-curvature, point-source speaker for clusters and standalone use cases
- 60° x 25° Multicell Transformer, rotatable by 90°
- 2 x 10″ bass/ midrange speaker
- 4″ premium HF driver with a 2.5″ voice coil
- 72 dB FIR-crossover, 1.35 kHz cutoff
- DSP controller on board for remote management and network connectivity
- DSP Out to connect conventional speakers to the network
- Windows und macOS DSP CONTROL software
- Overall output power: 1000 watts peak (Class-D, biamped)
- Frequency response: +/- 3 dB: 88 Hz – 19 kHz
- 142 dB max. SPL peak (half-space)
- PowerCon mains port and PowerCon Link power outlet
- PU-coated birch-multiplex enclosure
- Factory presets for typical use cases plus user-programmable presets
- Made in Germany
Specifications
|
" data-order="
|
" data-order="
|
|---|---|
| Max. SPL @ 10% THD | 133 dB half space* (88 Hz – 12 kHz averaged) |
| Max. SPL peak @ 10 % THD | 142 dB half space* |
| Frequency response +/-3 dB | 88 Hz – 19 kHz* |
| Frequency response -10 dB | 82 Hz 20 kHz* |
| Power amp output (RMS) | 1,000 W |
| Amp type | Class D – Biamped |
| LF driver | – |
| Low-/mid speaker | 2x 10″, 2.5″ voice coil |
| HF driver | 1.4″, 2.5 voice coil |
| Horn directivity | 60° x 25° MCT horn, rotatable |
| Active crossover frequency | 1.35 kHz FIR X-over with 72 db/oct. |
| Maximum input level | +20 dBu |
| Analog inputs | 1x XLR combo balanced |
| Analog thru | 1x XLR balanced |
| DSP Out | 1x XLR |
| Network port | Ethercon RJ45, 1x In, 1x Thru |
| Filter presets | Stand Alone, Cluster (2), Cluster (3), Remote |
| Remote software | DSP CONTROL (Windows, macOS) |
| DSP functions | Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute |
| Sample rate | 96 kHz |
| System latency | Less than 2.9 ms |
| Mains connector | 1x Powercon NAC3 In, 1x Powercon NAC3 Thru, 100–240 V |
| Power consuption | 2.5 A / 100–240 V nominal according to EN 62368-1 |
| Clustering angle | 25° |
| Angles up (Monitor angle) | – |
| Pole mount | DuoTilt 3°/7° |
| Rigging points | – |
| Carrying handles | 2x MultiGrip |
| Housing | Birch multiplex |
| Finish | PU coating black |
| Front grille | 2 mm metal grille backed with black acoustic foam |
| Dimensions (WxHxD) | 34 cm x 96 cm x 39 cm |
| Weight | 33 kg / 72.8 lbs |
