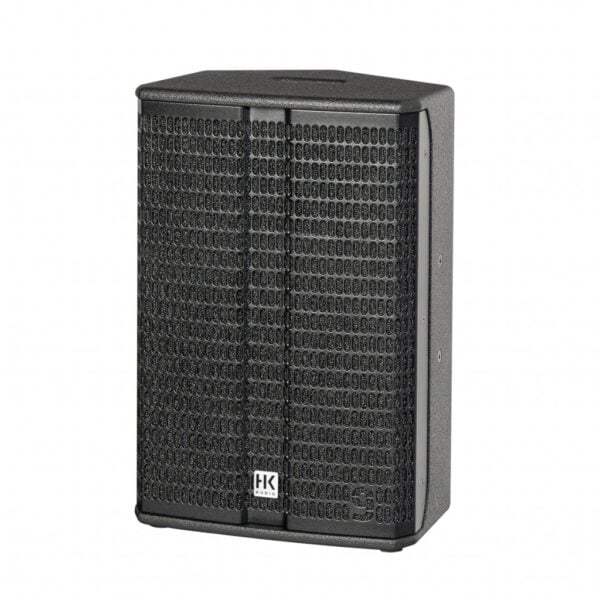

HK Audio LINEAR 9 110 XA
HK Audio LINEAR 9 110 XA
In stock
Couldn't load pickup availability
Johannesburg & Pretoria: 2-3 business days
Cape Town: 2-3 business days
Durban: 3-4 business days
Other major cities: 3-5 business days
Remote & rural areas: 5-7 business days
Timeframes are measured from dispatch, not from order placement. Stocked items are dispatched within 1 business day of payment confirmation. Specialist and indent items are confirmed with a written dispatch date before your order is processed. Free nationwide delivery via insured courier.
View full shipping policy →
- EFT (Electronic Funds Transfer) — Direct bank transfer from any South African bank account. No additional fees. Orders confirmed within 1 business day of payment reflecting.
- Cross Border Transfer — For customers in SADC neighbouring countries (Lesotho, Zimbabwe, Mozambique, Namibia, Botswana, Eswatini). Invoices settle in ZAR; direct delivery is within South Africa only, and cross-border orders are handled on a collection/freight-forwarder basis.
- Wire Transfer — For international customers outside the SADC region. Proforma invoices are processed in ZAR value; direct delivery is within South Africa only, with collection/freight-forwarder arrangements required for export orders.
Orders are confirmed once payment reflects. Banking details are provided in your order confirmation email. View payment details →
Supplied as an independent parallel import. Warranty is provided directly by VisionSounds — warranty claims are handled by us, not the manufacturer. This is in addition to your rights under the Consumer Protection Act, including the six-month implied warranty of quality.
Returns accepted within 30 days of receipt in the condition supplied, with all original packaging and accessories.
Faulty or incorrect items: free return shipping covered by VisionSounds.
Change of mind returns: customer responsible for return shipping costs.
No restocking fees. Refunds processed within 7 business days of inspection.
View returns & refund policy →
Add the HK Audio LINEAR 9 110 XA by HK to your setup — professional audio equipment trusted by engineers, musicians, and event production crews across South Africa.
HK Audio LINEAR 9 110 XA
Features
- Multipurpose point-source loudspeaker, deployable on a speaker pole, as a stage monitor, as a front-fill, and as a mid-high-unit in ground-stacked and flown PA systems
- 80° x 60° CD horn, rotatable by 90°
- 10″ bass/ midrange speaker
- 1″ HF driver with a 1.4″ voice coil
- 60 dB FIR crossover, 2 kHz cutoff
- DSP controller on board for remote management and network connectivity
- Factory presets for typical use cases plus user-programmable presets
- Windows und iOS DSP CONTROL software
- Overall output power: 700 watts peak (Class-D, biamped)
- Frequency response +/- 3 dB: 70 Hz – 19 kHz
- 129 dB SPL peak (half-space)
- PowerCon mains port and PowerCon Link power outlet
- PU-coated birch-multiplex enclosure
- Made in Germany
Specifications
|
" data-order="
|
" data-order="
|
|---|---|
| Max. SPL @ 10% THD | 126 dB half space (70 Hz – 12 kHz averaged) |
| Max. SPL peak @ 10 % THD | 129 dB half space |
| Frequency response +/-3 dB | 70 Hz – 19 kHz |
| Frequency response -10 dB | 65 Hz – 20 kHz |
| Power amp output (RMS) | 700 W |
| Amp type | Class D – biamped |
| LF driver | – |
| Low-/mid speaker | 1x 10″, 2.5″ voice coil |
| HF driver | 1″, 1.4″ voice coil |
| Horn directivity | 80° x 60° CD horn, rotatable |
| Active crossover frequency | 2 kHz FIR X-over with 60 dB/oct. |
| Maximum input level | +20 dBu |
| Analog inputs | 1x XLR combo balanced |
| Analog thru | 1x XLR balanced |
| DSP Out | 1x XLR |
| Network port | Ethercon RJ45, 1x In, 1x Thru |
| Filter presets | Flat, Monitor, Low Cut, Remote |
| Remote software | DSP CONTROL (Windows, macOS) |
| DSP functions | Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute |
| Sample rate | 96 kHz |
| System latency | Less than 2.6 ms |
| Mains connector | 1x Powercon NAC3 In, 1x Powercon NAC3 Thru, 100–240 V |
| Power consuption | 1 A / 100–240 V nominal according to EN 62368-1 |
| Clustering angle | – |
| Angles up (Monitor angle) | 30° |
| Pole mount | DuoTilt 3°/7° |
| Rigging points | 5x M8 (AP-8) |
| Carrying handles | 2x SingleGrip |
| Housing | Birch multiplex |
| Finish | PU coating black |
| Front grille | 2 mm metal grille backed with black acoustic foam |
| Dimensions (WxHxD) | 36 x 54 x 31 cm 14-11/64 x 21-1/4 x 12-13/64″ |
| Weight | 16.5 kg / 36.4 lbs |
