Beyma

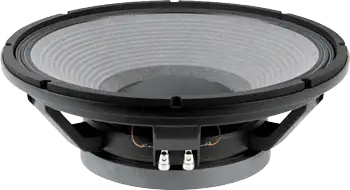

Beyma 15LX60V2 Low Frequency Transducer
Beyma 15LX60V2 Low Frequency Transducer
In stock
Couldn't load pickup availability
Johannesburg & Pretoria: 2-3 business days
Cape Town: 2-3 business days
Durban: 3-4 business days
Other major cities: 3-5 business days
Remote & rural areas: 5-7 business days
Timeframes are measured from dispatch, not from order placement. Stocked items are dispatched within 1 business day of payment confirmation. Specialist and indent items are confirmed with a written dispatch date before your order is processed. Free nationwide delivery via insured courier.
View full shipping policy →
- EFT (Electronic Funds Transfer) — Direct bank transfer from any South African bank account. No additional fees. Orders confirmed within 1 business day of payment reflecting.
- Cross Border Transfer — For customers in SADC neighbouring countries (Lesotho, Zimbabwe, Mozambique, Namibia, Botswana, Eswatini). Invoices settle in ZAR; direct delivery is within South Africa only, and cross-border orders are handled on a collection/freight-forwarder basis.
- Wire Transfer — For international customers outside the SADC region. Proforma invoices are processed in ZAR value; direct delivery is within South Africa only, with collection/freight-forwarder arrangements required for export orders.
Orders are confirmed once payment reflects. Banking details are provided in your order confirmation email. View payment details →
Supplied as an independent parallel import. Warranty is provided directly by VisionSounds — warranty claims are handled by us, not the manufacturer. This is in addition to your rights under the Consumer Protection Act, including the six-month implied warranty of quality.
Returns accepted within 30 days of receipt in the condition supplied, with all original packaging and accessories.
Faulty or incorrect items: free return shipping covered by VisionSounds.
Change of mind returns: customer responsible for return shipping costs.
No restocking fees. Refunds processed within 7 business days of inspection.
View returns & refund policy →
Add the Beyma 15LX60V2 Low Frequency Transducer by Beyma to your setup — professional audio equipment trusted by engineers, musicians, and event production crews across South Africa.
High power handling: 700 WAES
● High sensitivity: 98 dB (1W / 1m)
● FEA optimized magnetic circuit
● CONEX spider for higher resistance and consistency
KEY FEATURES
● Weatherproof cone with treatment for both sides of the cone
● 4” DUO double layer in/out voice coil
● Extended controlled displacement: Xmax ± 9 mm
● 47 mm peak-to-peak excursion before damage
Nominal diameter - 380 mm 15 in Rated impedance - 8 Ω Minimum impedance - 7,2 Ω Power capacity 1 - 700 WAES Program power 2 - 1.400 W Sensitivity - 98 dB 1W / 1m @ ZN Frequency range - 30 - 1.500 Hz Recom. enclosure - Vb = 125 l (Bass-reflex design) - Fb = 43 Hz Voice coil diameter - 101,6 mm 4 in Bl factor - 21,1 N/A Moving mass - 0,147 kg Voice coil length - 20 mm Air gap height - 10 mm Xdamage (peak to peak) - 47 mm
Resonant frequency, fs - 42 Hz D.C. Voice coil resistance, Re - 5,1 Ω Mechanical Quality Factor, Qms - 21,2 Electrical Quality Factor, Qes - 0,45 Total Quality Factor, Qts - 0,44 Equivalent Air Volume to Cms, Vas - 105 l Mechanical Compliance, Cms - 92 µm / N Mechanical Resistance, Rms - 1,9 kg / s Efficiency, η0 - 1,67 % Effective Surface Area, Sd - 0,091 m2 Maximum Displacement, Xmax 4 - 8 mm Displacement Volume, Vd - 728 cm3 Voice Coil Inductance, Le @ 1 kHz - 2,1 mH
