Take full control of your audio with the Allen & Heath CQ-12T 10-Channel Digital Mixer by Allen & Heath. Whether you're running a live event, studio session, or broadcast setup, this mixer gives you the routing, EQ, and dynamics control that professionals rely on.

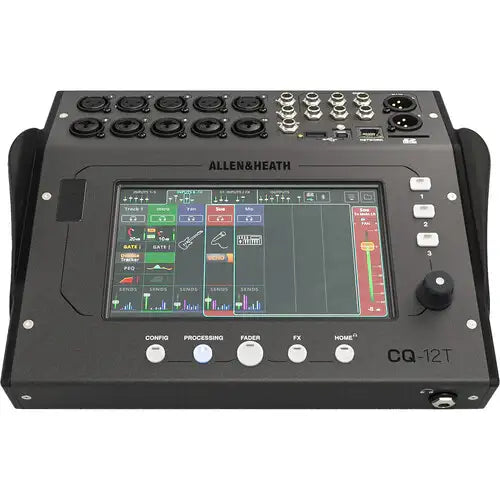

Allen & Heath CQ-12T Compact 12-Channel Digital Mixer with Touchscreen
Mix and record with the Allen & Heath CQ-12T, a compact digital mixer featuring 96 kHz FPGA processing, Bluetooth, wireless control, and SD/USB audio recording and playback, well suited for bands, producers, and AV rental houses. Use it as a main mixer in a small venue or a sub mixer on a larger stage.
The CQ-12T mixer utilizes a 7″ capacitive touchscreen interface to easily navigate and control the robust mix engine that comes complete with several assistants to help your mixes sound their best including a gain assistant, feedback assistant, FX assist engine, and Automatic Mic Mixer (AMM). Take control of the full complement of channel strip effects like EQ, compression, and gating that’s available on every channel and set up several sub-mixes for monitoring and effects. The CQ-12T features 10 mic/line XLR/combo XLR-1/4″ inputs, a pair (for stereo) of 1/4″ balanced inputs, two balanced XLR main outputs, and six 1/4″ mix outputs. There is an assignable headphone output. The mixer ships with a 12 VDC power supply.
Features
- 10 Mic/Line In, Two 1/4″ Balanced TRS In
- Two XLR Main Out, Six 1/4″ Mix Out
- 7″ Capacitive Touchscreen Interface
- 16×18 USB-B Audio Interface
- 16×18 Multitrack Rec/Playback via SD
- Stereo USB Rec/Playback
- CQ-MixPad Control App
- 96 kHz FPGA Processor with Built-In FX
- AMM, Feedback, FX Assist Engines
Specifications
| Number of Analog Input Channels |
12
|
| Number of Mic Preamps |
No
|
| Number of Analog Output Channels |
8
|
| Max I/O Capacity |
12 x Input / 6 x Output
|
| Mix Routing |
1 x Stereo Main LRC
6 x Mono Bus |
| Groups |
No
|
| Presets |
No
|
| Display |
7″ Touchscreen (Backlit)
|
| Faders & Level Adjustment |
No
|
Signal Processing
| Input Polarity |
Normal/Reverse
|
| Dynamic Processing |
Compressor, Gate
|
| Solo/Mute |
Solo, Mute per Input Channel, Bus, Master
|
| Built-In Effects |
2 x Stereo Effect (Type Unspecified)
|
| Automatic Mic Mixing |
Yes
|
Digital Audio
| Sample Rates |
96 kHz
|
Performance
| dBFS Reference Level |
+18 dBu = 0 dBFS
|
Connectivity
| Analog Inputs |
5 x XLR 3-Pin Balanced Mic/Line Input
5 x Combo XLR-1/4″ 3-Pin Balanced/Unbalanced Mic/Line Input 2 x 1/4″ TRS Balanced/Unbalanced Stereo Line Input (1 Stereo Pair) |
| Analog Outputs |
2 x XLR 3-Pin Stereo Main Output (1 Stereo Pair)
6 x 1/4″ TRS Balanced/Unbalanced Mix Output 1 x 1/4″ TRS Unbalanced Stereo Headphone Output |
| Phantom Power |
+48 V
|
| Digital I/O |
1 x RJ45 (Network)
|
| MIDI I/O |
No
|
| USB |
1 x USB-A (Audio Playback, Audio Streaming, External Memory, Service)
1 x USB-B 2.0 (Host Connection) |
| USB I/O Capacity |
16 x Input / 18 x Output
|
| Wireless |
Bluetooth
*Built-In |
| Mobile App Compatible |
Yes: Android & iOS
App Name: CQ-MixPad Functionality: Access Stored Files, Adjust Settings, Remote Control *As of August 2023: Check with the manufacturer for the most up-to-date compatibility |
| External Display I/O |
No
|
Recording
| Max Multitrack Recording |
16 Tracks
|
| Media Support |
SD
|
Power
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| DC Input Power |
12 VDC at 4 A
|
Physical
| Rack Mountable |
Yes
|
| Rackmount Size |
6 RU (with Optional Hardware)
|
| Dimensions |
11.4 x 9.5 x 3.5″ / 29 x 24.2 x 8.8 cm
|
| Weight |
5.3 lb / 2.4 kg
|
Packaging Info
| Package Weight |
9.025 lb
|
| Box Dimensions (LxWxH) |
14.5 x 12 x 7.7″
|
