Dolby Atmos at Home: A Speaker Placement Guide for South African Cinema Rooms

Dolby Atmos is the headline feature on almost every modern AV receiver sold in South Africa, and for good reason — when implemented properly, it genuinely changes how a movie sounds. Rain falls from above. Helicopters cross overhead. Footsteps cross the ceiling. The soundfield expands from a flat plane around your head into a three-dimensional bubble that includes height.

But Atmos done badly is just expensive ceiling decoration. The difference between transformative immersion and "I bought ceiling speakers and can barely tell" comes down almost entirely to placement. This guide walks through the speaker configurations Atmos supports, where to put the height channels, and the practical compromises most SA cinema rooms have to make.

How Atmos Notation Works

Atmos systems are written as three numbers like 5.1.2 or 7.1.4. The breakdown:

• First number — ear-level speakers: front left, centre, front right, plus surrounds (5 or 7 total)
• Second number — subwoofers (1 or 2)
• Third number — height channels (2, 4, or 6 in serious builds)

So a 5.1.2 system is five ear-level speakers, one subwoofer, two height speakers — the entry-level Atmos configuration. A 7.1.4 system adds two more surrounds and two more height speakers — the configuration most full Atmos builds aim for. A 9.2.6 is a reference dedicated cinema with side height speakers as well as front and rear.

For Dolby's own technical overview of Atmos, including detailed home theatre setup recommendations, the Dolby Atmos page is the authoritative source.

The Two Ways to Add Height: Ceiling vs Upward-Firing

Atmos height channels can be delivered two ways, and the difference matters more than most people realise.

In-ceiling speakers

In-ceiling speakers are flush-mounted in the ceiling itself, firing straight down at the listening position. This is the configuration Atmos was designed around — true overhead speakers reproducing true overhead audio. The localisation is precise, the effect is fully immersive, and there's no compromise.

The trade-off is installation. Cutting holes in your ceiling, running speaker cable through the roof void, and mounting four (or six) ceiling speakers is real construction work. In SA homes with concrete slab ceilings rather than gypsum board, this can become a substantial undertaking. For tenants, it's usually impossible.

Upward-firing Atmos modules

Upward-firing Atmos speakers sit on top of your existing front and surround speakers (or are integrated into them) and fire at the ceiling at a specific angle. The sound bounces off the ceiling and reaches the listening position from above, creating the illusion of overhead audio.

The trade-off is that this only works well in specific ceiling conditions. You need a flat, sound-reflective ceiling between 2.4 and 3.6 metres high. Vaulted ceilings, soft acoustic tiles, beams, or skylights all disrupt the bounce path and degrade the effect. In SA homes with painted concrete or smooth gypsum ceilings, upward-firing works well. In homes with exposed wooden beams, thatched roofs, or acoustic panelling above, in-ceiling speakers become the only practical option.

Upward-firing modules are also lower in resolution than direct in-ceiling speakers — they integrate well as ambient effects but localise less precisely.

The Practical Atmos Configurations

5.1.2 — Entry-level Atmos

Five ear-level speakers (front L/C/R + two surrounds), one subwoofer, two height speakers placed either in the ceiling above and slightly forward of the listening position, or as upward-firing modules on the front speakers.

This is the minimum to qualify as "Atmos" and it's a real upgrade from a 5.1 system. The height effects work, especially with content mixed for it. A 7.2 channel AV receiver supports this configuration with channels to spare. The Marantz CINEMA 70 and Denon AVR-X2800H are typical receivers for a 5.1.2 setup.

5.1.4 — Recommended sweet spot

Same ear-level configuration as 5.1.2, but with four height speakers — two front heights and two rear heights, or four ceiling speakers in a rectangular array. This is where Atmos starts to deliver real overhead movement. Rain doesn't just sound "up there," it moves across the ceiling. The bubble closes properly.

A 9.4 channel AV receiver covers 5.1.4 with channels to spare. The Marantz CINEMA 50 is the classic choice here. Browse the full receiver range in our AV Receivers and Amplifiers collection.

7.1.4 — Full reference layout

Seven ear-level speakers (front L/C/R, two side surrounds, two rear surrounds), one or two subwoofers, four height channels. This is the configuration most serious home cinema builds aim for and it's what most well-mixed Atmos soundtracks are designed for.

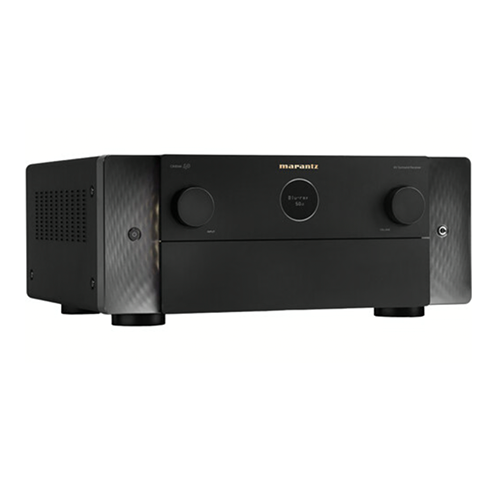

You need an 11-channel receiver or a 9-channel receiver with the option to add an external two-channel amplifier. The Marantz CINEMA 40, Denon AVC-X6800H, and the Marantz AV 30 preamplifier (paired with separate amps) all handle 7.1.4 natively.

Placement Angles That Actually Matter

Dolby publishes specific angle ranges for each speaker position. These aren't arbitrary — they correspond to how the audio engine places sound objects in three-dimensional space. The summary version, measured from the primary seating position:

• Front left and right — 22 to 30 degrees off centre axis
• Centre channel — directly in front, at ear level or just above, ideally below the screen
• Side surrounds — 90 to 110 degrees from the front, slightly above ear level
• Rear surrounds (in 7.x.x configurations) — 135 to 150 degrees, behind the listening position
• Front height (top front) — directly above the front speakers, approximately 45 degrees up from the listening position
• Rear height (top rear) — directly above the rear listening area, mirroring the front heights
• Subwoofer — flexible, usually front but room placement matters more than position relative to seats

For ceiling speakers specifically, Dolby's Atmos home theatre installation guidelines document covers the precise placement geometry. The key insight: the height speakers should be at a 45-degree-ish elevation from the listening position, which usually means placing them slightly forward and slightly behind the seats, not directly above them.

Real-Room Compromises Most SA Cinema Rooms Have to Make

Almost no real room follows the Dolby diagrams exactly. The practical compromises:

Front speakers too close together or too far apart. If your TV or screen is small relative to the room, you'll naturally want the front speakers wider than the 22-30 degree spec. This sacrifices some image specificity in stereo music but generally works fine for movies.

Surrounds not at 110 degrees. Most SA living rooms have couches against a wall, which makes proper side surround placement impossible. The compromise is to mount surrounds on the side walls behind the listening position rather than the ideal beside-and-slightly-back position. Atmos remixing handles this, but the directional precision drops slightly.

Asymmetric room shape. L-shaped open-plan living rooms, room dividers, fireplaces, doorways — none of these match the symmetrical Dolby diagram. Asymmetric setups are still better than no Atmos, but expect to spend time with the receiver's room correction (Audyssey, Dirac Live, or YPAO depending on brand) compensating.

Ceiling height variation. Upward-firing Atmos modules need a 2.4-3.6 metre flat ceiling. Many SA homes have higher vaulted lounges. In that case, in-ceiling speakers become the practical answer — but only if the slab or roof structure allows.

Side wall reflections. Bare painted walls reflect sound and confuse the surround imaging. Even adding rugs, curtains, and a bookshelf does measurable acoustic work. Dedicated absorber panels at the first reflection points improve clarity more than upgrading the receiver.

Calibrate, Then Calibrate Again

Every Atmos-capable AV receiver in our range has a room correction system. Marantz and Denon use Audyssey MultEQ. Yamaha uses YPAO. Higher-end receivers and processors support Dirac Live. Whichever system your receiver runs, the calibration step is not optional and not "good enough out of the box."

The room correction process:

1. Put the calibration microphone at your primary listening position
2. Run the measurement sweep through every speaker
3. Move the microphone to a second seat and repeat
4. Repeat for as many seats as the system supports (Audyssey supports 8 positions)
5. Let the system compute the correction filter
6. Verify the speaker distances, levels, and crossovers it set

The difference between a calibrated and uncalibrated system is bigger than most upgrades you could make. Skipping this step is the most common mistake in home Atmos setups.

What to Buy Together

A complete Atmos build needs to balance the components. A premium receiver into entry speakers underperforms an entry receiver into proper speakers. The sensible build order:

1. Front floorstanding speakers first — the foundation of the system
2. A matched centre channel — voice-matched to the fronts
3. A capable AV receiver from our receiver collection
4. One or two subwoofers — two is meaningfully better than one
5. Bookshelf surrounds matched in tonal character to the fronts
6. Atmos height modules or in-ceiling speakers for the height channels
